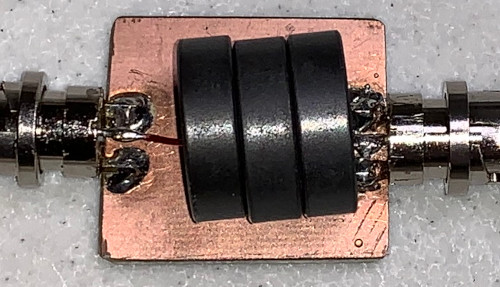

Fair-Rite 5952020601

3X 1T 3X 2T

Arbitrary Calibration using SDR-Kit BNC Calibration Kit
Delays = Cal Kit Delay + -76.8ps (8mm Amphenol 112538)
S11 from t2s(S21) with S21 12 Term Correction
Additional information
Fair-Rite Complex Permeability vs. Frequency (CSV) file here

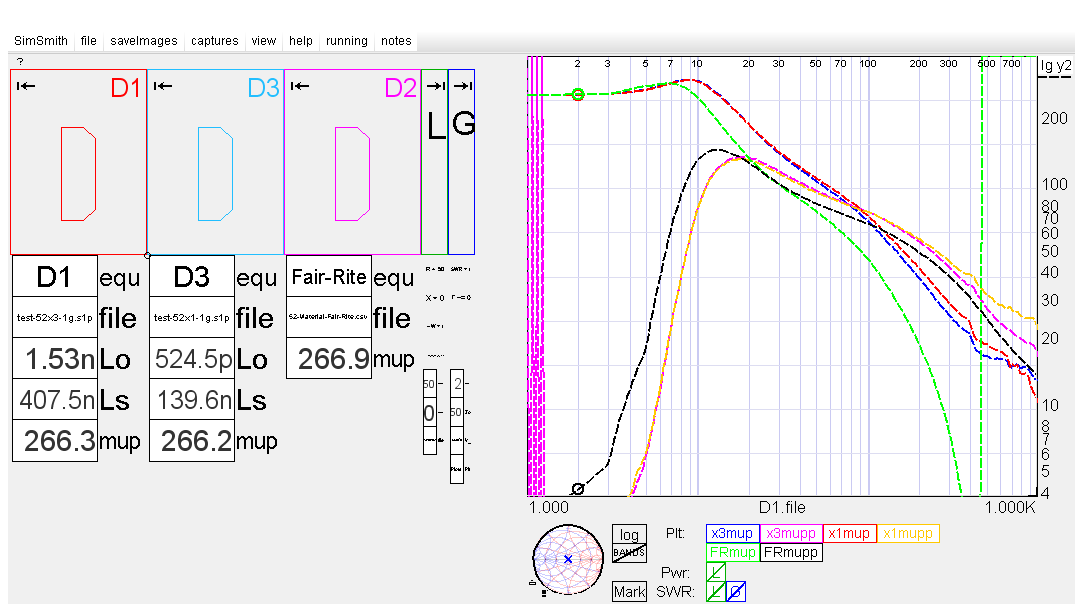

3x 1T and 1x 1T 1MHz to 1GHz

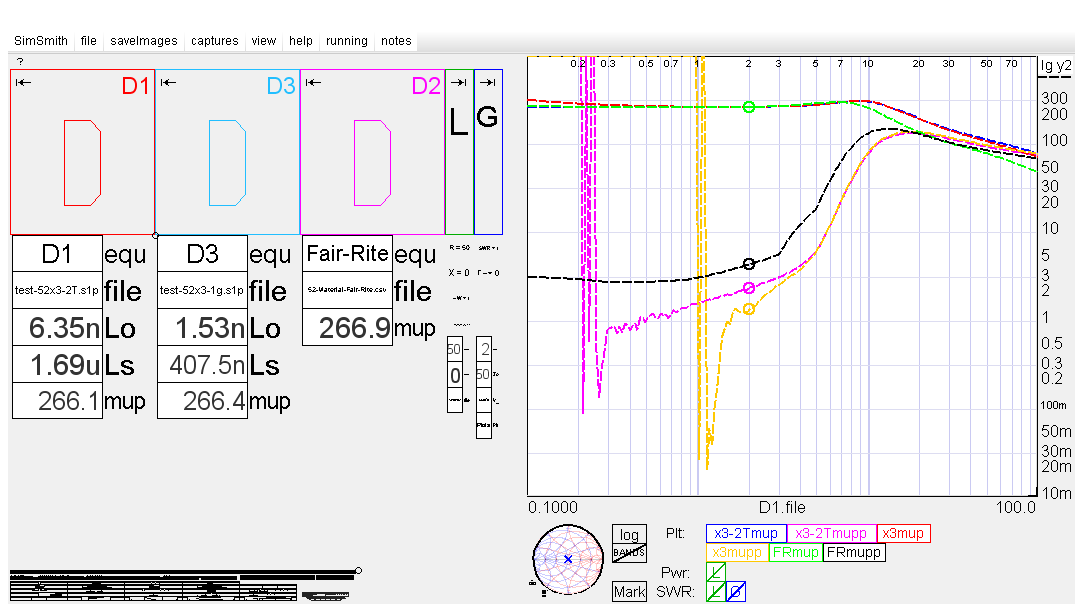

3x 2T and 3x 1T 100kHz to 100MHz

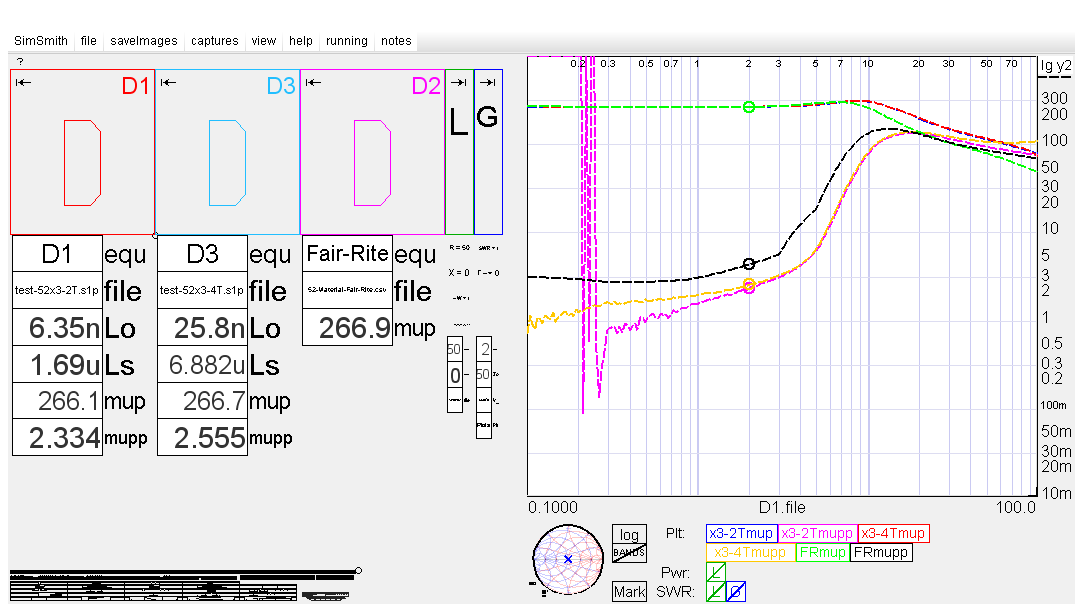

3x 2T and 3x 4T 100kHz to 100MHz

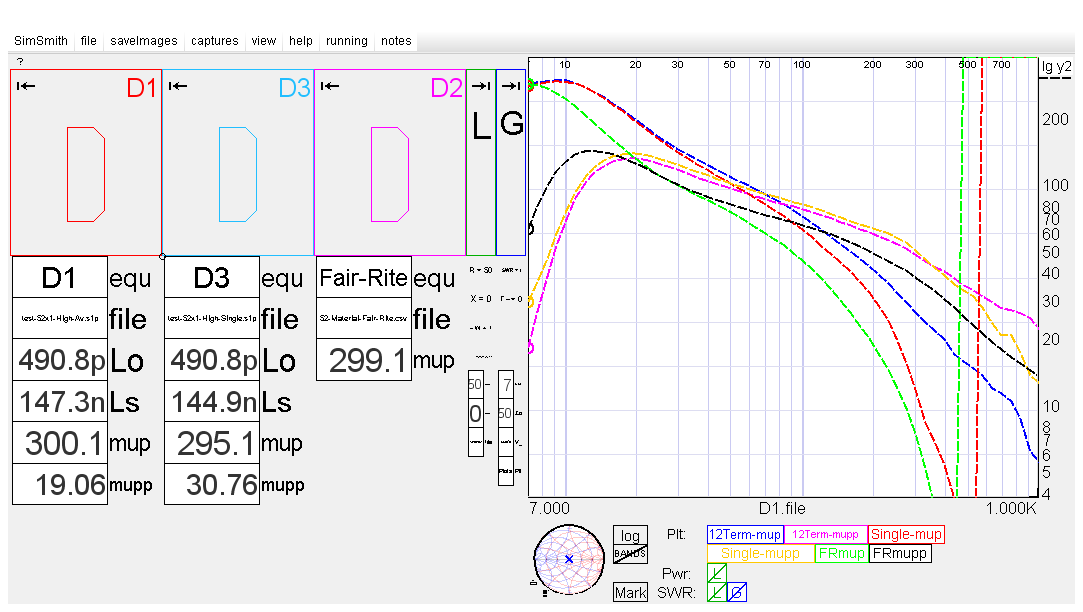

With and Without 12-term Correction

All Plots

52-CP-KN5L.CSV

Maximum sweep time
Fresh Calibration for each data set
3x 4T 100Khz to 7MHz 46 Points
1x 1T 7MHz to 1Ghz 55 Points
High frequency L_o adjusted for μ' match at 7MHz
Two 7MHz μ" values averaged to single point

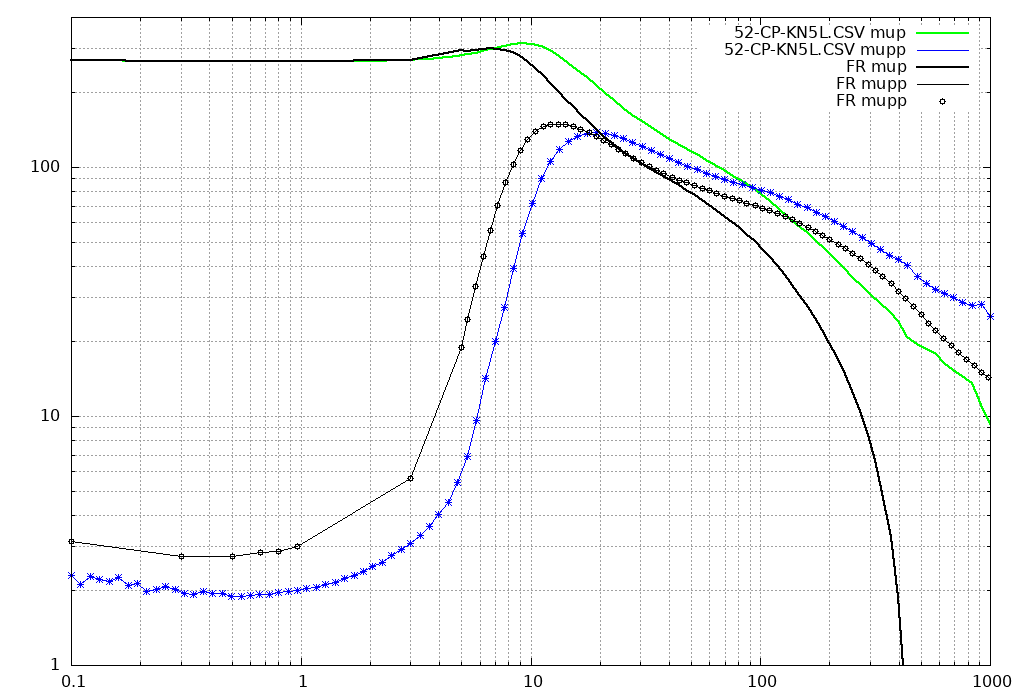

SimSmith compatible file 52-CP-KN5L.CSV
