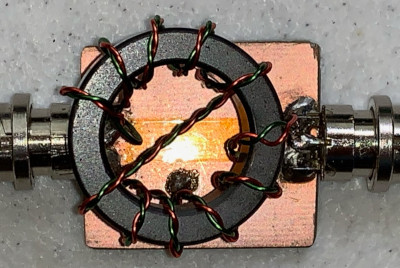

Balun FT114-43 11T CMRR

Balanced Common Mode Fixture

FT114-43 11T 62uH at 10kHz (Measured) S2P file: FT114-43-11T-nT.s2p

Fixture Schematic

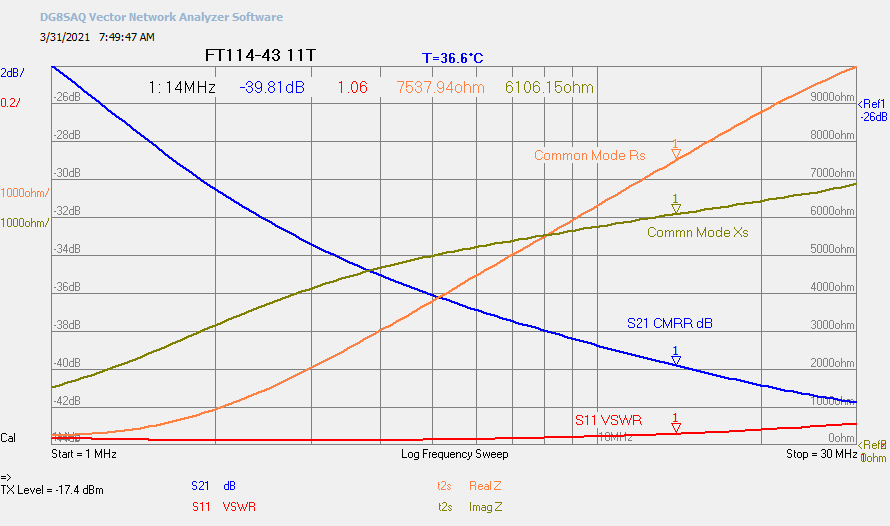

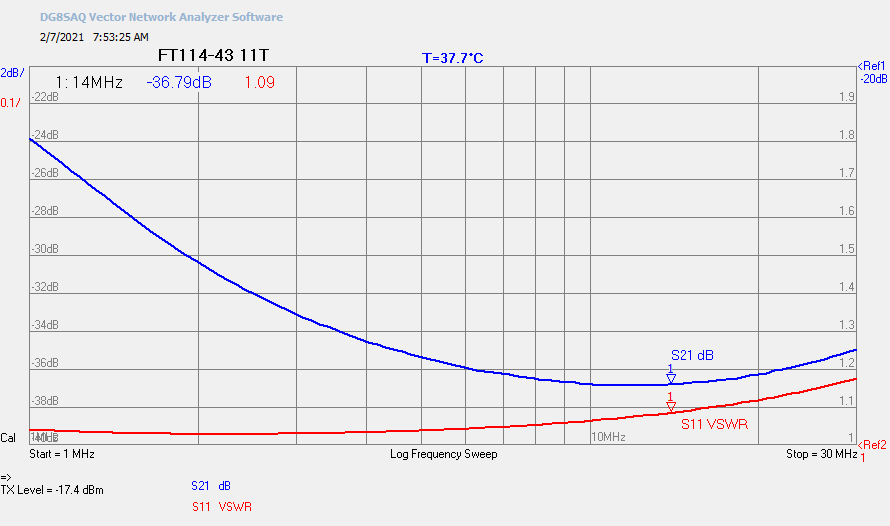

VNWA S21 CMRR and S11 VSWR

Balun FT114-43 11T CMRR Balanced Condition

Balanced Common Mode Fixture with 10:1 Trnasformer

Through Calibration Schematic

Measure Schematic

VNWA Window

SimSmith Window

Files: FT114-43-11T.s2p FT114-43-11T-CMF.s2p SimSmith traces LG1 Violet = Inductor Measurement S21 dB L Red = Balun Balanced Common Mode S21 dB S1 Light Blue = Balun Balanced S11 VSWR

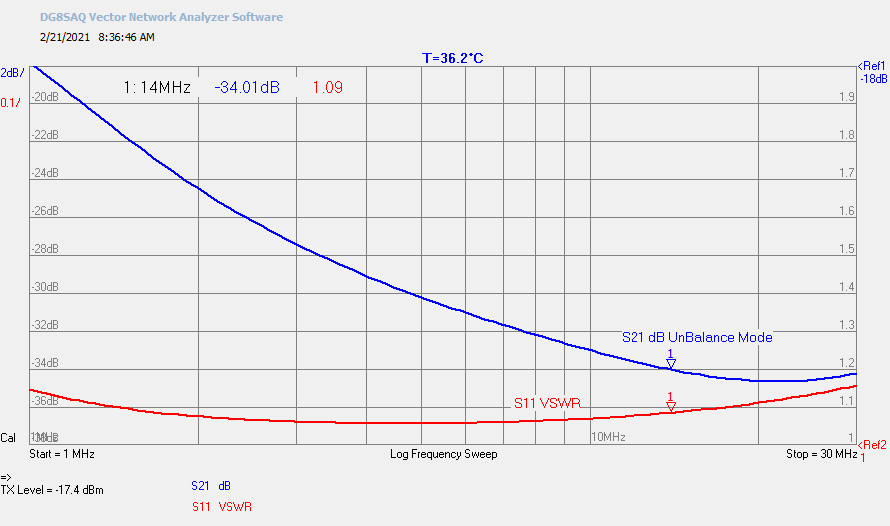

Balun FT114-43 11T CMRR Un-Balanced Condition

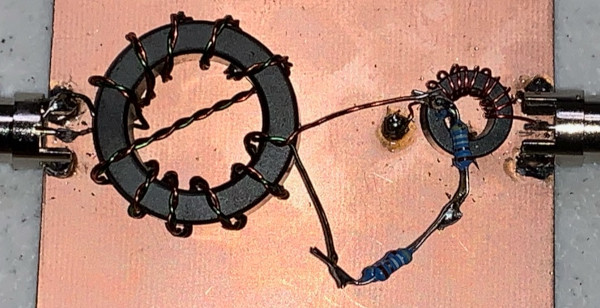

Un-Balanced Common Mode Fixture with 10:1 Transformer

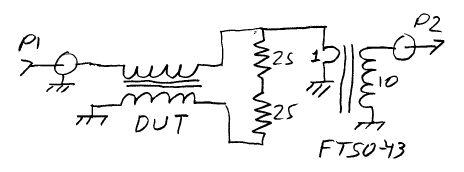

Measure Schematic

File: FT114-43-11T-CMF-UB.s2p

VNWA Window

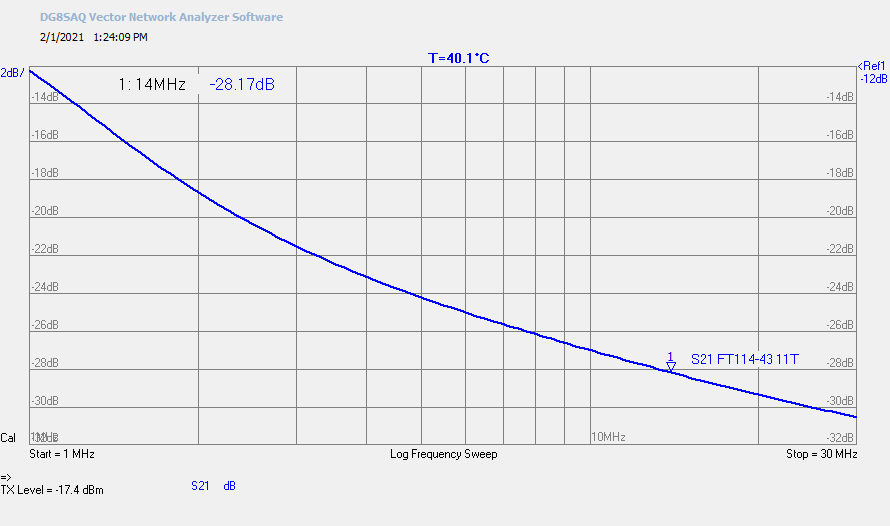

Balun FT114-43 11T Inductor Measurement

Calibration Process FT114-43 11T 62uH at 10kHz (Measured) File: FT114-43-11T.s2p Common Mode Current Measurement

VNWA S21 50Ω to 50Ω Inductor CMRR dB

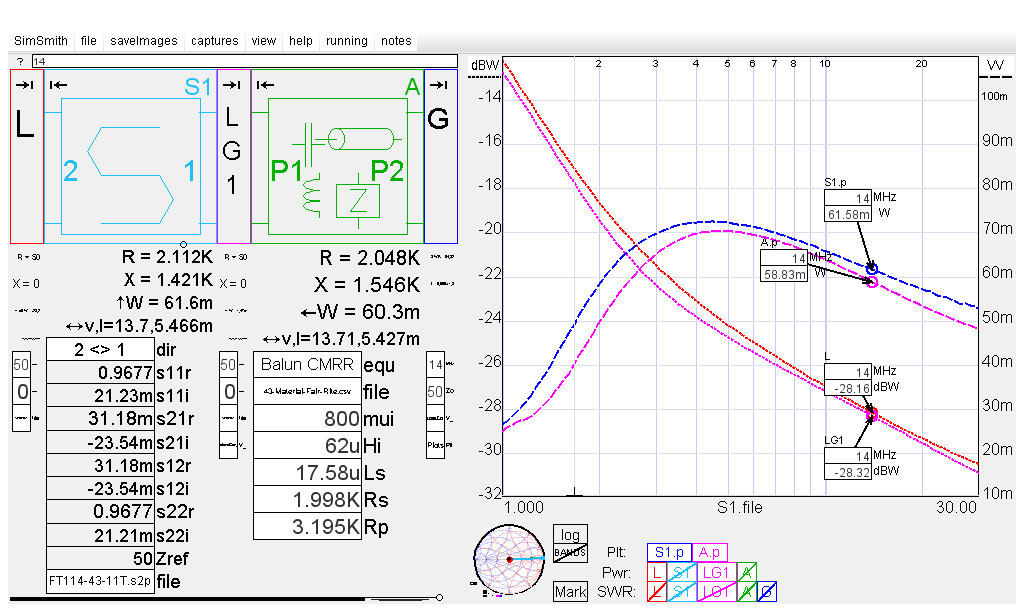

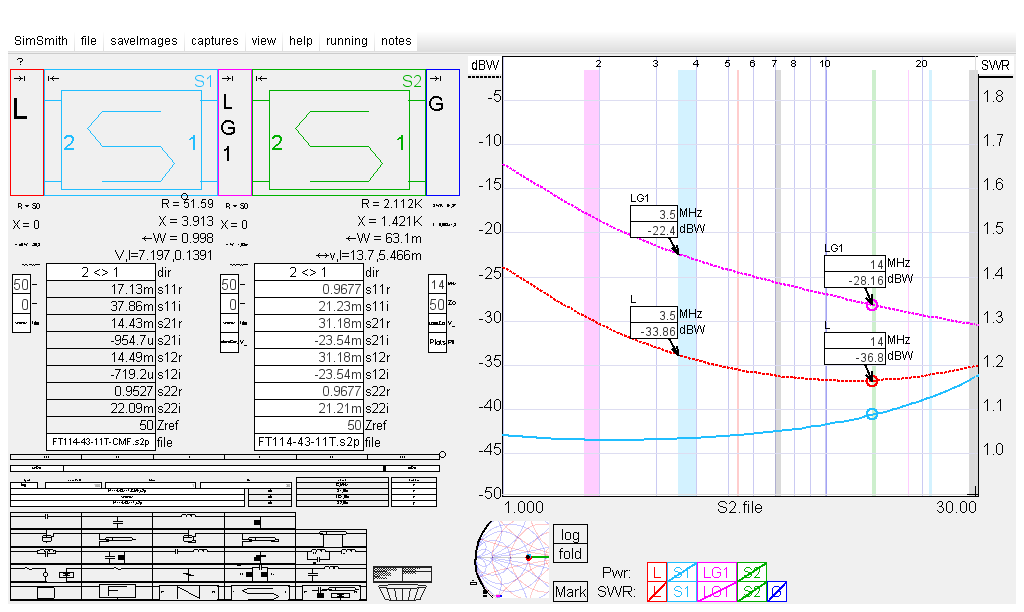

SimSmith Model Evaluation

Export VNWA s2p file to SimSmith S Blocks Fair-Rite File Download "Click here to download Complex Permeability vs. Frequency (CSV)" Replace five header lines with single line "Generic 1 1 2 3" L Red Trace = Measured CMRR dB LG1 Voilet Trace = Modeled CMRR dB S1.p Blue Trace = 43 material core heating in watts A.p Violet Trace = 43 material model core heating in watts

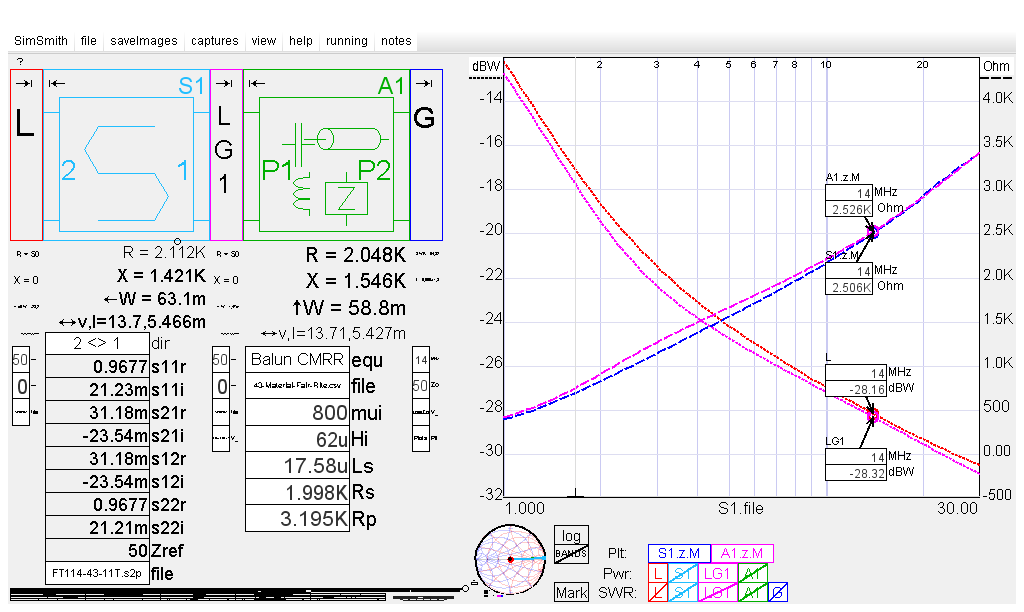

SimSmith Evaluate |Z|

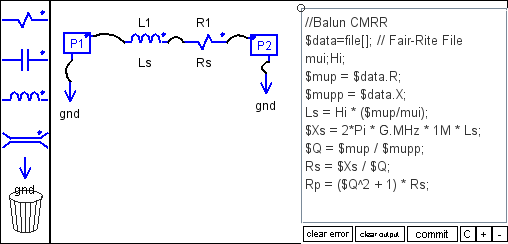

SimSmith CMRR RUSE Block
