Loss / 100 Feet --- k0 = 10 * Log10((DCR + Zo) / Zo)
| Type | Zo | Vf | k0 | k1 | k2 | Plot | Ref | Notes |
|---|---|---|---|---|---|---|---|---|
| JSC-1313 WM-554 | 370 | .93 | 0 | .04 | 0 | Ref | Estimate, CCS, k0=0, k1k2>7MHz | |
| JSC-1315 WM-552 | 400 | .92 | 0 | .05 | 0 | Ref | Estimate, CCS, k0=0, k1k2>11MHz | |

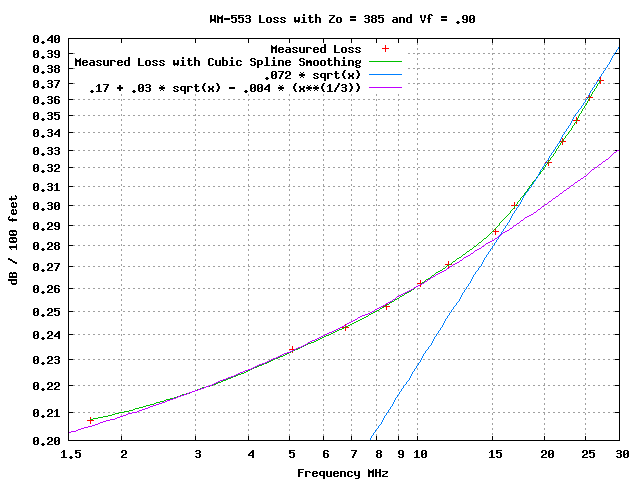

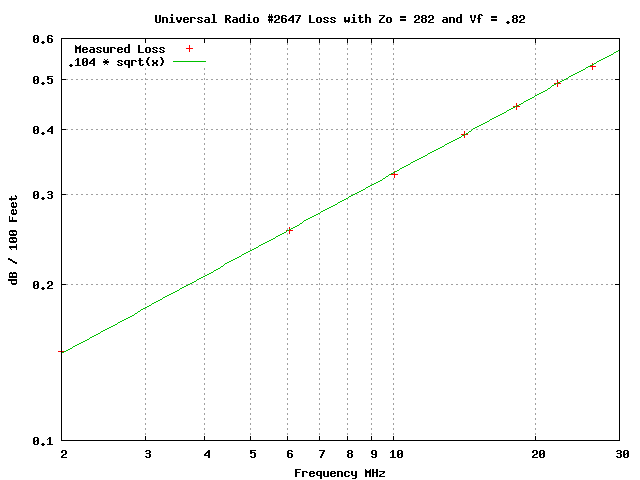

| JSC-1317 WM-553 | 390 | .90 | 0 | .072 | 0 | Plot | Ref | Measured Values, CCS, k0=0, k1k2>14MHz |
| JSC-1318 WM-551 | 400 | .89 | 0 | .063 | .0002 | Ref | Measured, CCS, k0=0, k1k2>9MHz | |
| JSC-1320 WM-561 | 280 | .82 | .031 | .10 | 0 | Plot | Ref | Measured Values |

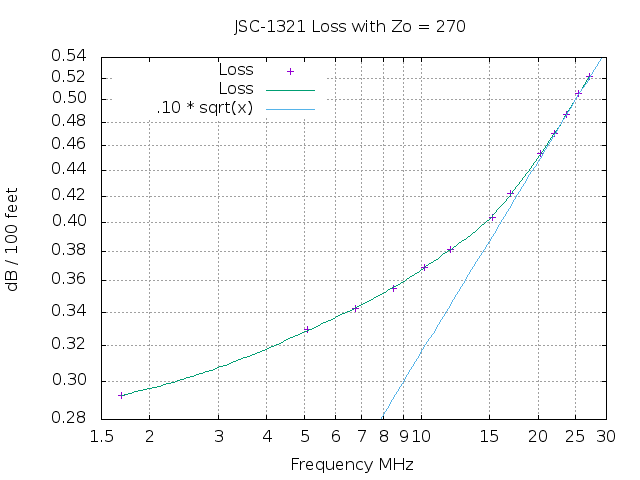

| JSC-1321 WM-562 | 270 | .8 | 0 | .10 | 0 | Plot | Ref | Estimate, CCS, k0=0, k1k2>15MHz |
| Belden 1694A RG-6 | 75 | .82 | .053 | .20 | 0 | Plot | Ref | |

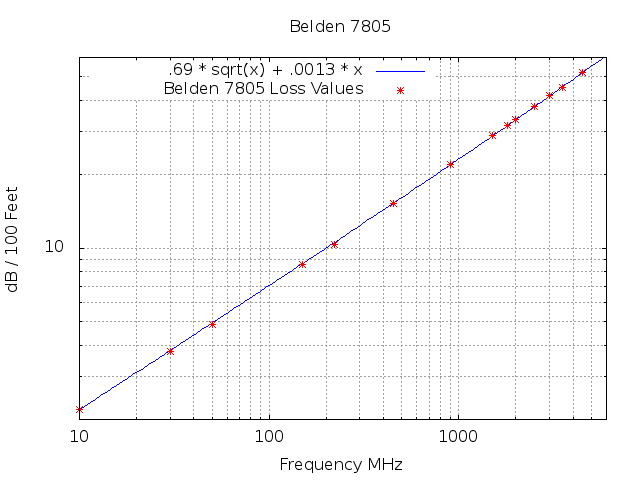

| Belden 7805 RG-174/U | 50 | .66 | .34 | .69 | .0013 | Plot | Ref | |
| Belden 7915A (RG-6/U) | 75 | .83 | .053 | .20 | 0 | Plot | Ref | |

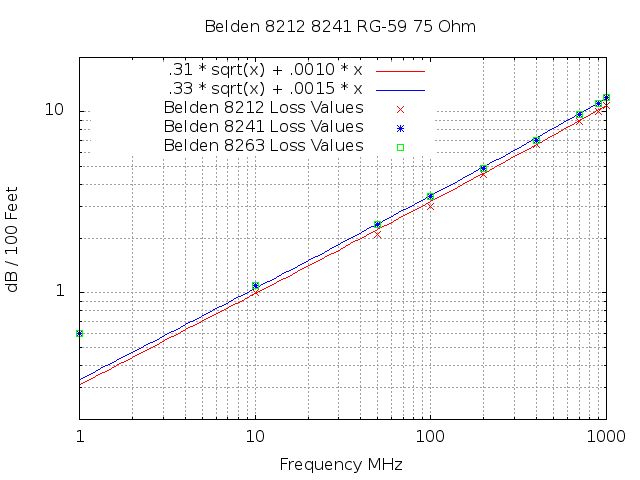

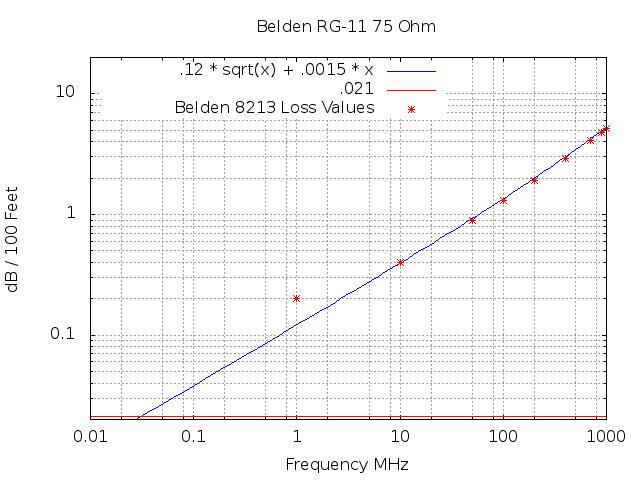

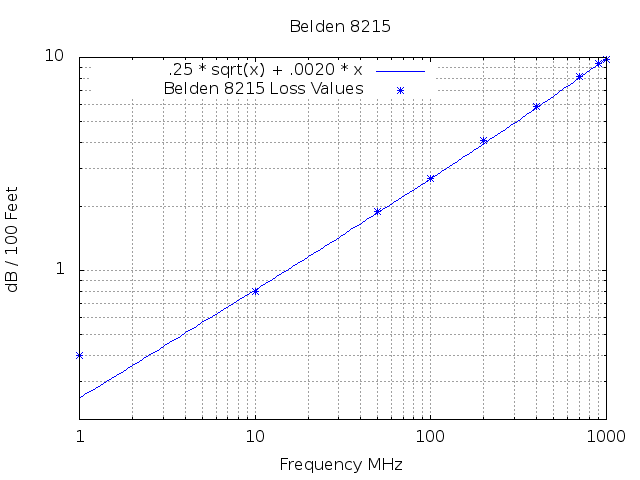

| Belden 8212 RG-59 | 75 | .78 | 0 | .31 | .0010 | Plot | Ref | CCS, k0=0, k1k2>10MHz |
| Belden 8213 RG-11 | 75 | .84 | .021 | .12 | .0015 | Plot | Ref | |
| Belden 8215 RG-6 | 75 | .66 | 0 | .25 | .0020 | Plot | Ref | CCS, k0=0, k1k2>10MHz |

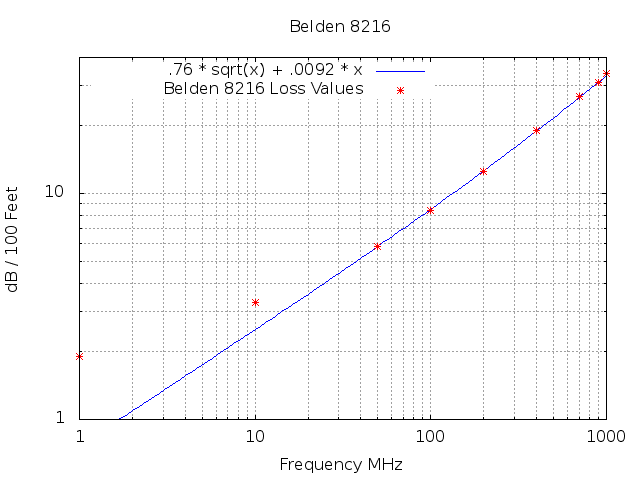

| Belden 8216 RG-174/U | 50 | .66 | 0 | .76 | .0092 | Plot | Ref | CCS, k0=0, k1k2>30MHz |

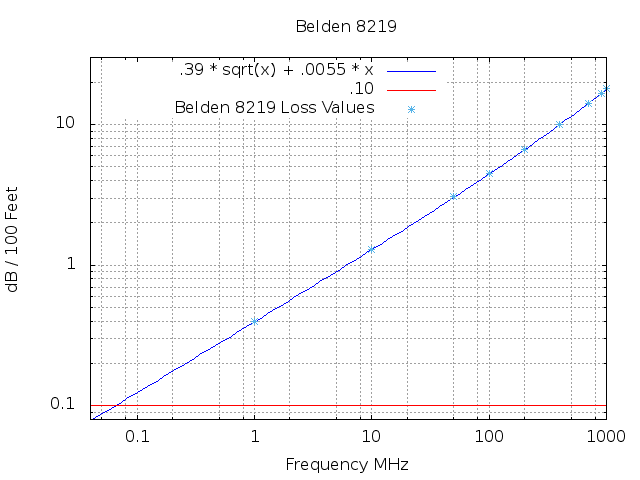

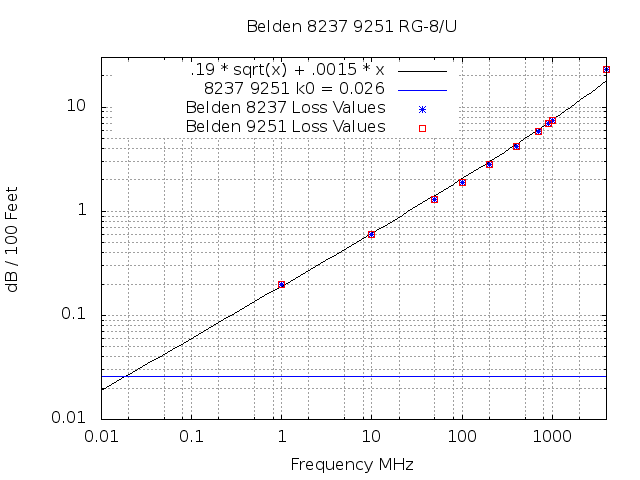

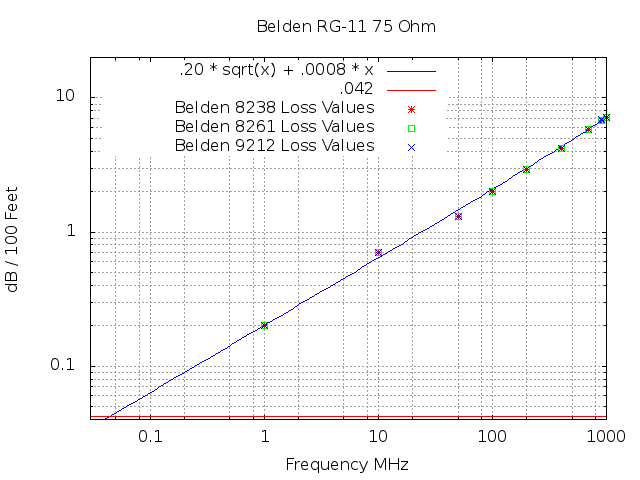

| Belden 8219 RG-58 | 53.5 | .73 | .10 | .39 | .0055 | Plot | Ref | |
| Belden 8237 RG-8/U | 52 | .66 | .026 | .19 | .0015 | Plot | Ref | |
| Belden 8238 RG-11 | 75 | .66 | .042 | .20 | .0008 | Plot | Ref | |

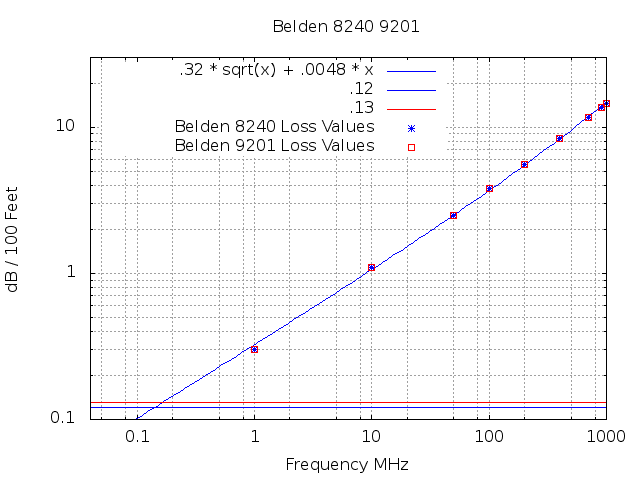

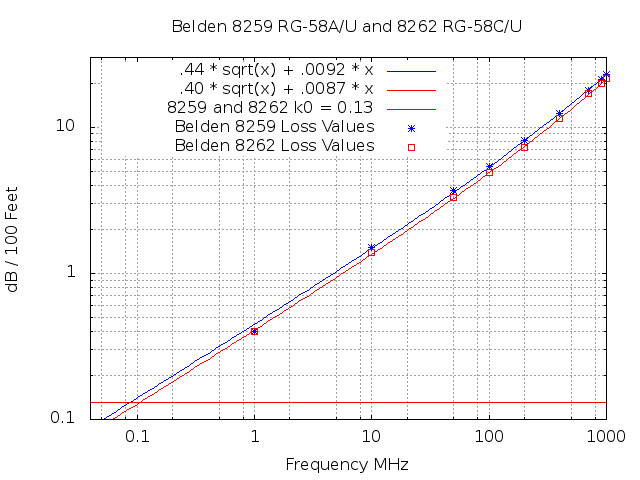

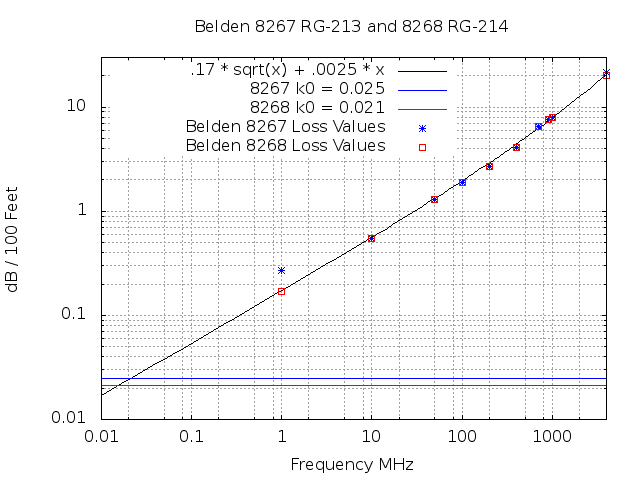

| Belden 8240 RG-58A/U | 51.5 | .66 | .12 | .32 | .0048 | Plot | Ref | |
| Belden 8241 RG-59 | 75 | .66 | 0 | .33 | .0015 | Plot | Ref | CCS, k0=0, k1k2>10MHz |
| Belden 8259 RG-58A/U | 50 | .66 | .13 | .44 | .0092 | Plot | Ref | |
| Belden 8261 RG-11 | 75 | .66 | .042 | .20 | .0008 | Plot | Ref | |
| Belden 8262 RG-58C/U | 50 | .66 | .13 | .40 | .0087 | Plot | Ref | |
| Belden 8263 RG-59 | 75 | .66 | 0 | .33 | .0015 | Plot | Ref | CCS, k0=0, k1k2>10MHz |
| Belden 8267 RG-213/U | 50 | .66 | .025 | .17 | .0025 | Plot | Ref | |
| Belden 8268 RG-214/U | 50 | .66 | .021 | .17 | .0025 | Plot | Ref | |

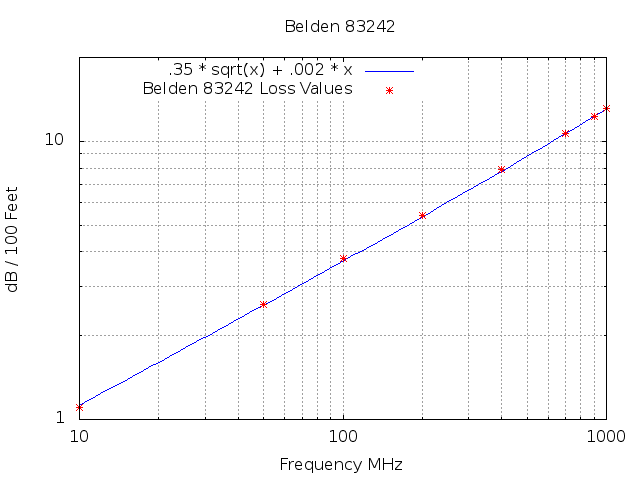

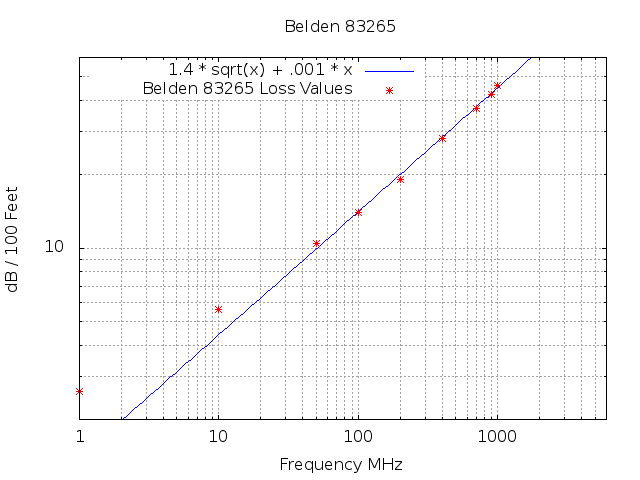

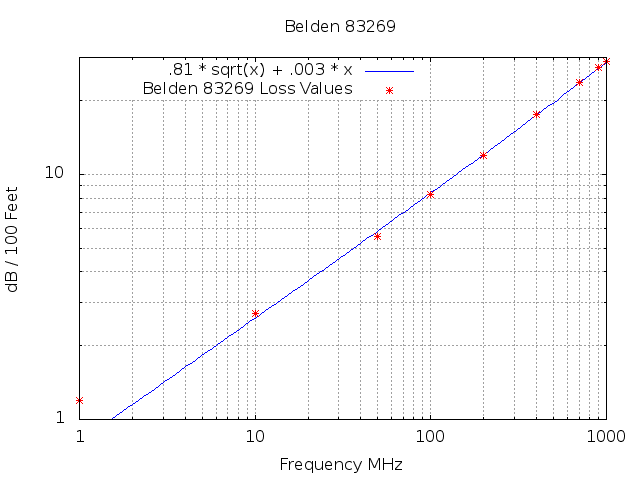

| Belden 83242 RG-RG-142B/U | 50 | .70 | 0 | .35 | .002 | Plot | Ref | CCS, k0=0, k1k2>1MHz |
| Belden 83265 RG-178/U | 50 | .695 | 0 | 1.4 | .001 | Plot | Ref | CCS, k0=0, k1k2>10MHz |
| Belden 83269 RG-188A/U | 50 | .695 | 0 | .81 | .003 | Plot | Ref | CCS, k0=0, k1k2>10MHz |

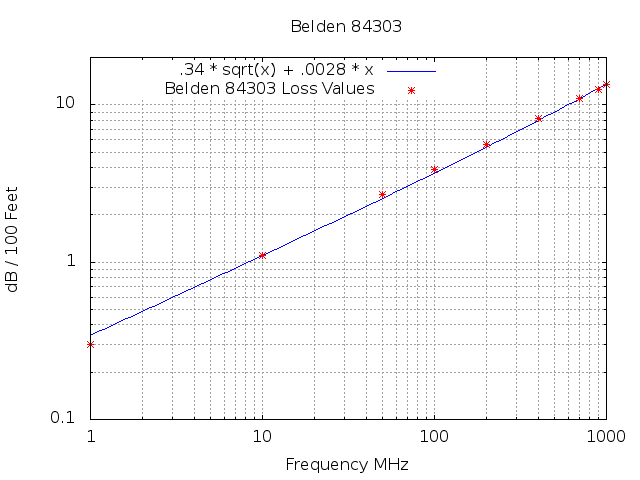

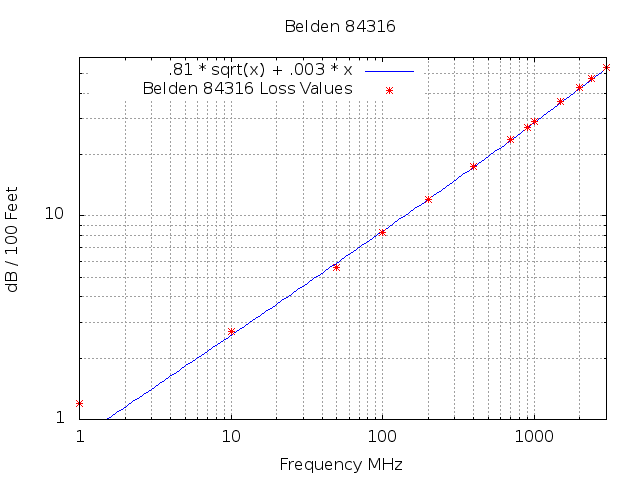

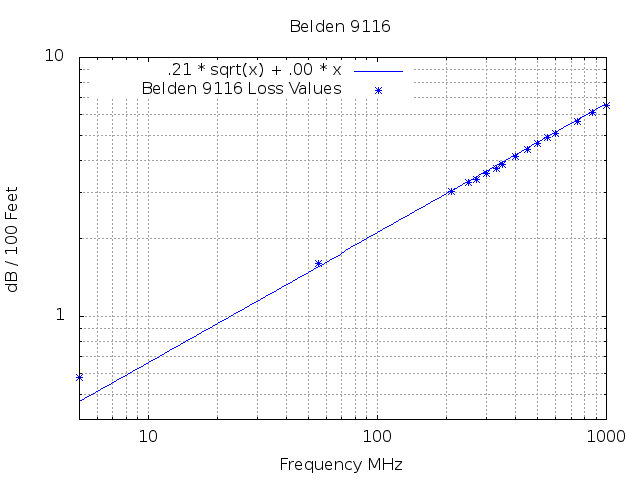

| Belden 84303 RG-303/U | 50 | .695 | 0 | .34 | .0028 | Plot | Ref | CCS, k0=0, k1k2>1MHz |
| Belden 84316 RG-316/U | 50 | .695 | 0 | .81 | .003 | Plot | Ref | CCS, k0=0, k1k2>10MHz |
| Belden 9116 (RG-6/U) | 75 | .83 | 0 | .21 | 0 | Plot | Ref | CCS, k0=0, k1k2>30MHz |
| Belden 9201 RG-58 | 52 | .66 | .13 | .32 | .0048 | Plot | Ref | |
| Belden 9212 RG-11 | 75 | .66 | .042 | .20 | .0008 | Plot | Ref | |
| Belden 9251 RG-8/U | 52 | .66 | .026 | .19 | .0015 | Plot | Ref | |

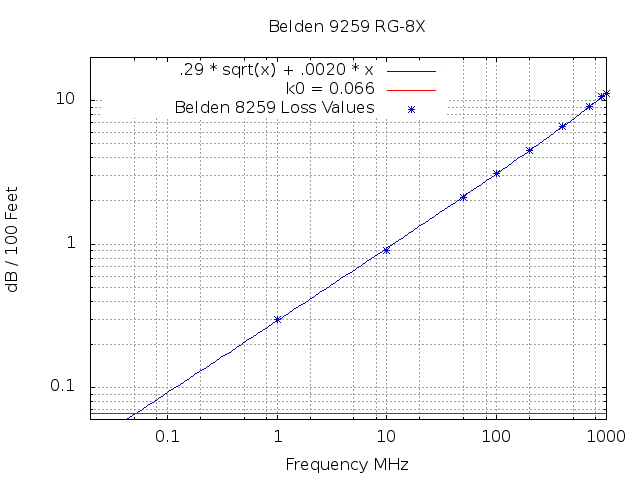

| Belden 9258 RG-8X | 50 | .82 | .066 | .29 | .0020 | Plot | Ref | |

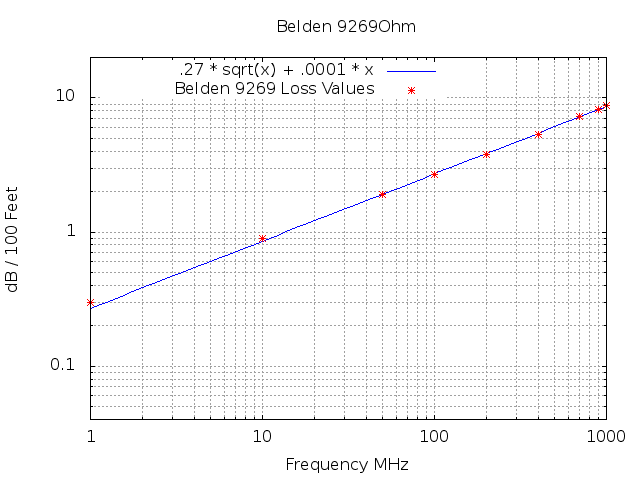

| Belden 9269 RG-62A/U | 93 | .84 | 0 | .27 | .0001 | Plot | Ref | CCS, k0=0, k1k2>1MHz |

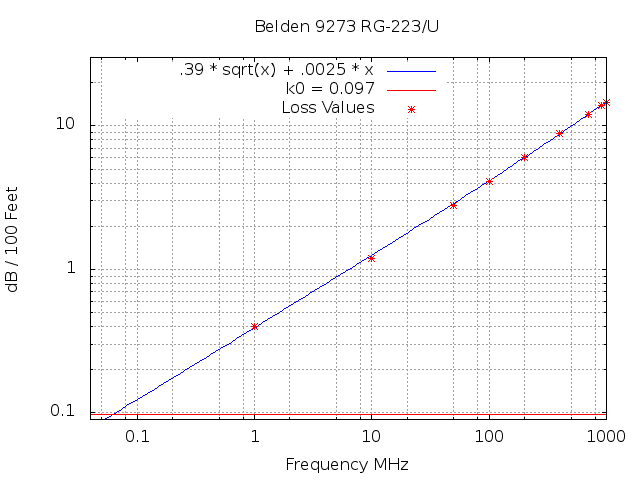

| Belden 9273 RG-223/U | 50 | .66 | .097 | .39 | .0025 | Plot | Ref | |
| Belden 9659 RG-59 | 75 | .78 | .10 | .29 | .0015 | Plot | Ref | |

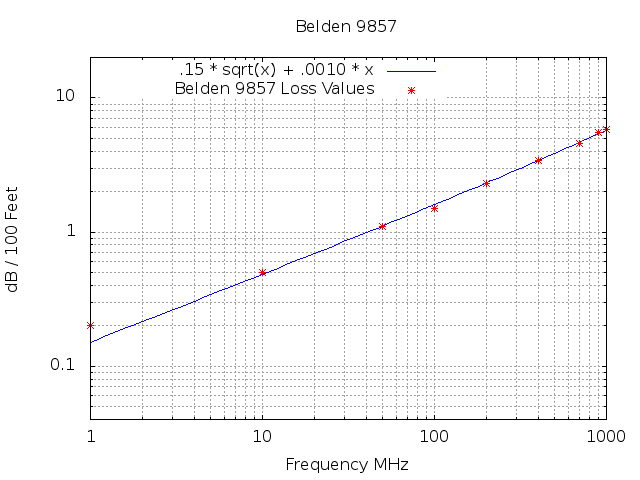

| Belden 9857 RG-63/U | 125 | .84 | 0 | .15 | .001 | Plot | Ref | CCS, k0=0, k1k2>1MHz |

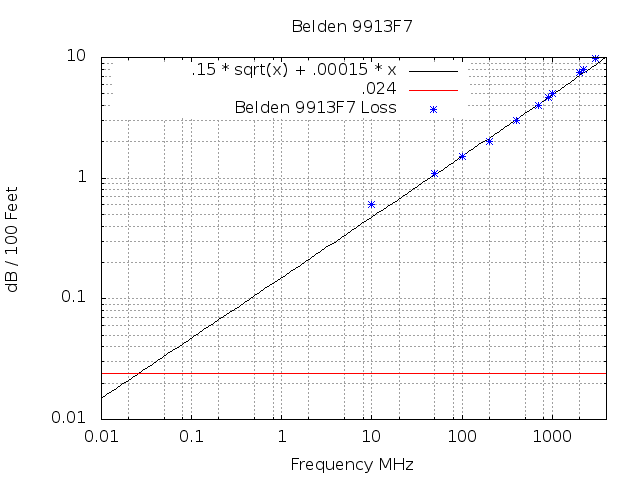

| Belden 9913F7 RG-8/U | 52 | .85 | .024 | .15 | .00015 | Plot | Ref | |

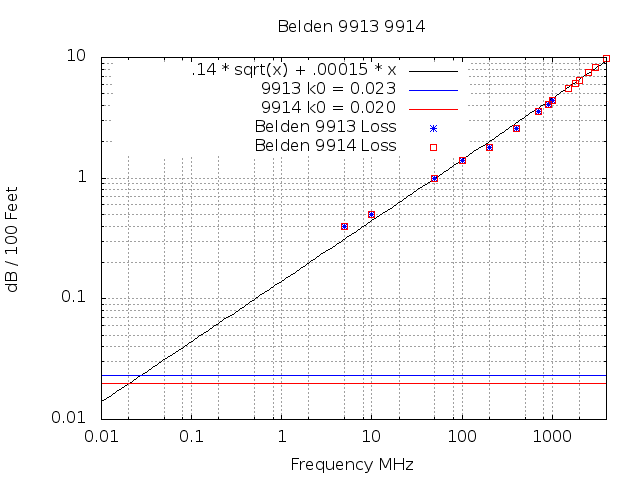

| Belden 9913 RG-8/U | 50 | .84 | .023 | .14 | .00015 | Plot | Ref | |
| Belden 9914 RG-8/U | 50 | .82 | .020 | .14 | .00015 | Plot | Ref | |
| TM LMR-200 | 50 | .83 | .088 | .32 | .00033 | Ref | K1 k2 from Reference | |
| TM LMR-200-UF | 50 | .83 | .11 | .39 | .00040 | Ref | K1 k2 from Reference | |
| TM LMR-240 | 50 | .83 | .061 | .24 | .00033 | Ref | K1 k2 from Reference | |
| TM LMR-240-UF | 50 | .80 | .070 | .29 | .00040 | Ref | K1 k2 from Reference | |
| TM LMR-400 RG-8/U | 50 | .84 | .026 | .12 | .00026 | Ref | K1 k2 from Reference | |
| TM LMR-400-UF RG-8/U | 50 | .83 | .024 | .15 | .00031 | Ref | K1 k2 from Reference | |
| TM LMR-500 | 50 | .82 | .018 | .097 | .00026 | Ref | K1 k2 from Reference | |
| TM LMR-500-UF | 50 | .85 | .017 | .12 | .00031 | Ref | K1 k2 from Reference |
