Transmission Line Measurement Techniques

  • RG-58A/U 100 feet long
  • All Impedance measurement taken with RigExpert AA-54
  • KX3 DL1 reference
  • Agilent E5061B reference
  • Min|Z| with Zo = 51.5 reference
  • Chipman Zsc Zoc "Theory and Problems of Transmission Lines" by
    Robert A. Chipman, Pages 134 and 135.

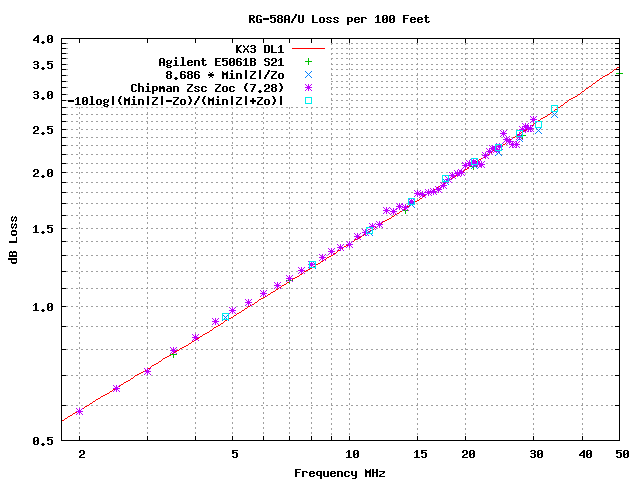

RG-58A/U Loss

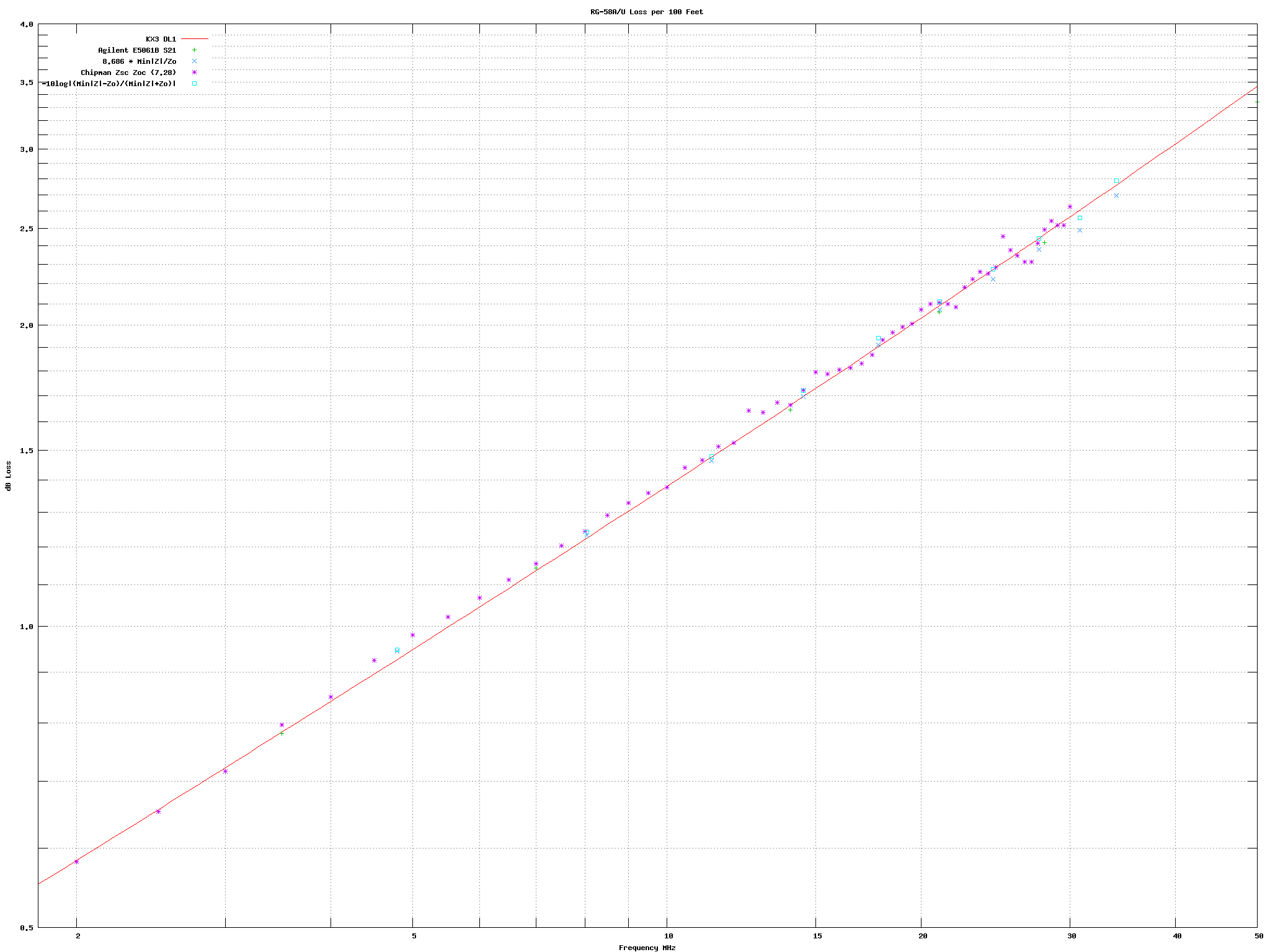

Large Plot

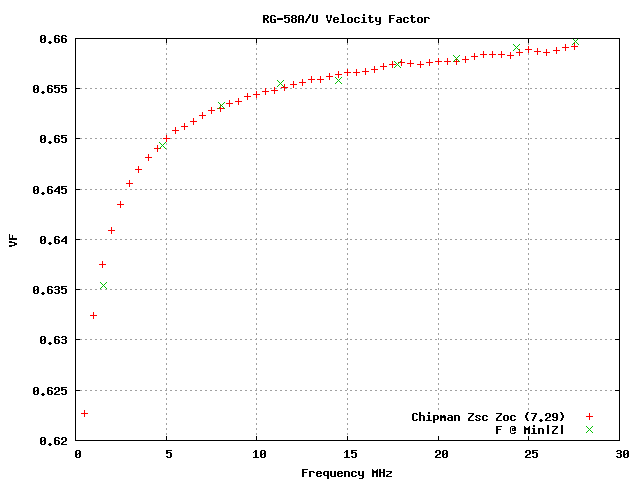

RG-58A/U Velocity Factor

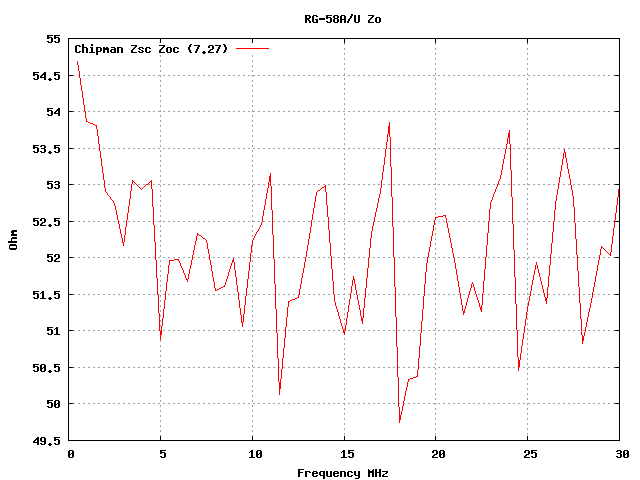

RG-58A/U Impedance

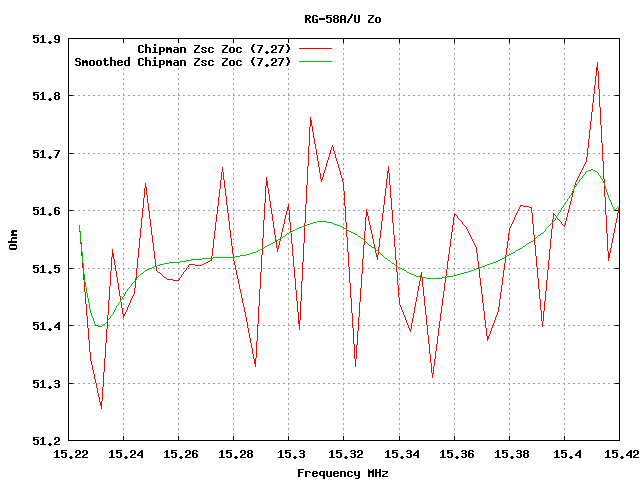

RG-58A/U Impedance at odd 1/8 Wavelength
