Speaker Wire Balun Test

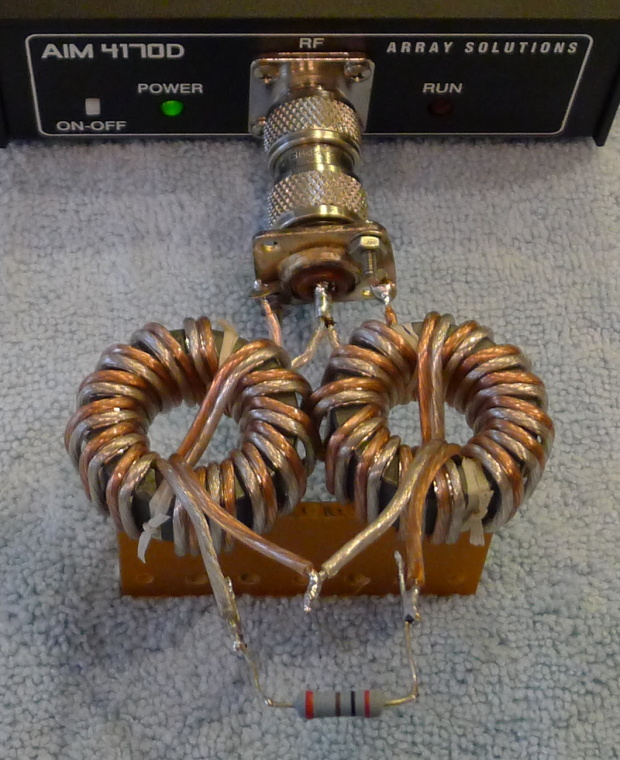

FT140-61 15 turn

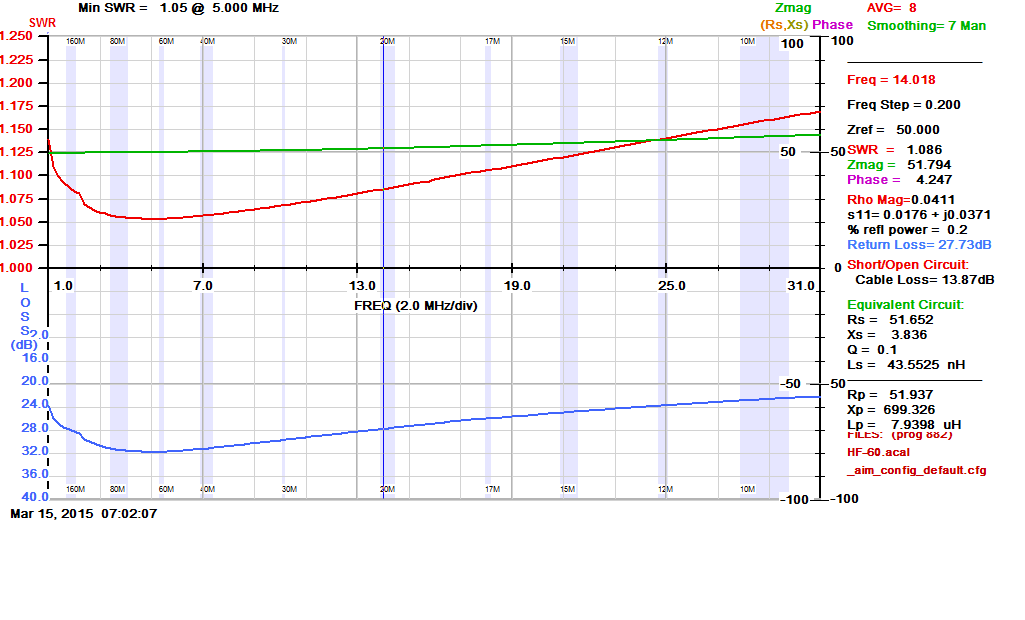

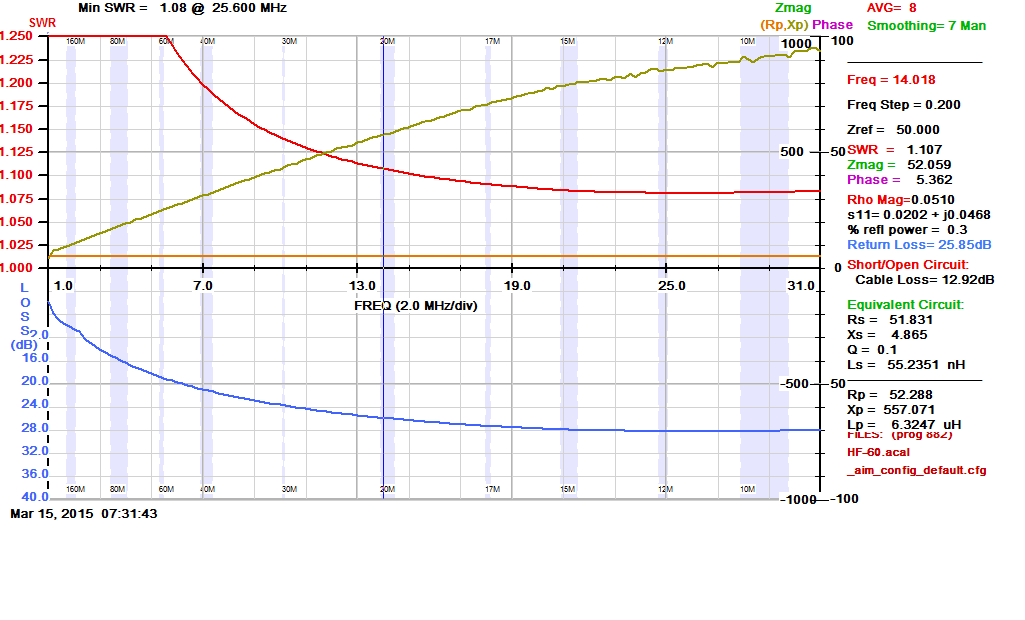

AIM 4170D Measurement

SimSmith Model

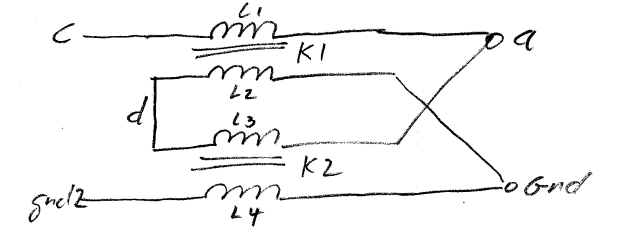

SimSmith N-Block Schematic

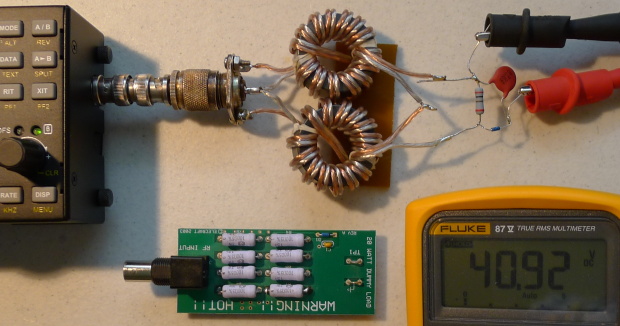

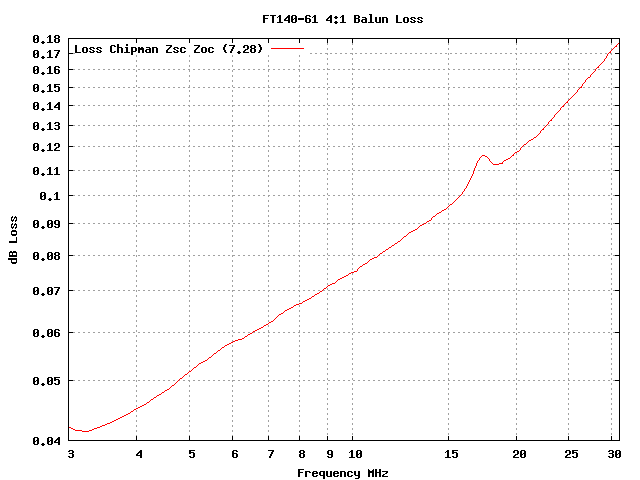

Loss Measurement

Measurement frequency	=	14 MHz
Measured Balun output	=	40.9 -> ((40.9 + 0.25)/(2)^.5)^2 / 200 = 4.23 W
Measured DL1	=	10.2 -> (10.2 + 0.25)^2 / 25 = 4.37 W
Difference	=	0.14 dB

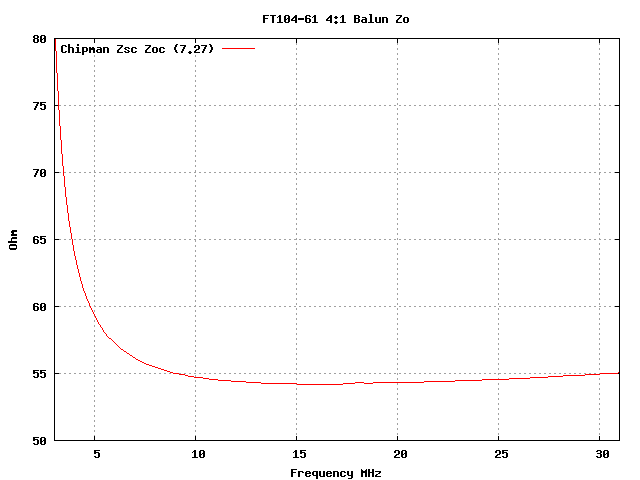

Loss using Open Short Impedance Measurements

Chipman Zsc Zoc "Theory and Problems of Transmission Lines" by
Robert A. Chipman, Equations 7.27 and 7.28

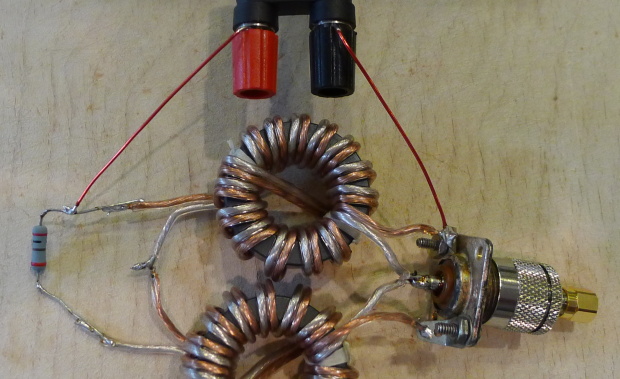

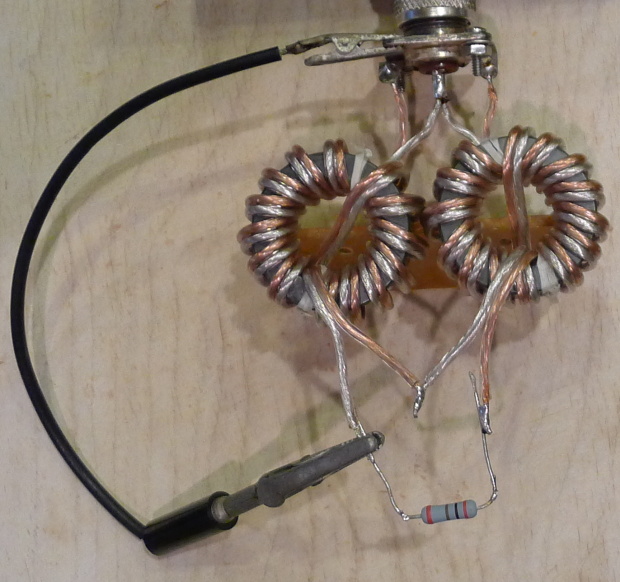

Balun Shunt Impedance Limit Test

Choke Inductance = 16.5 uH

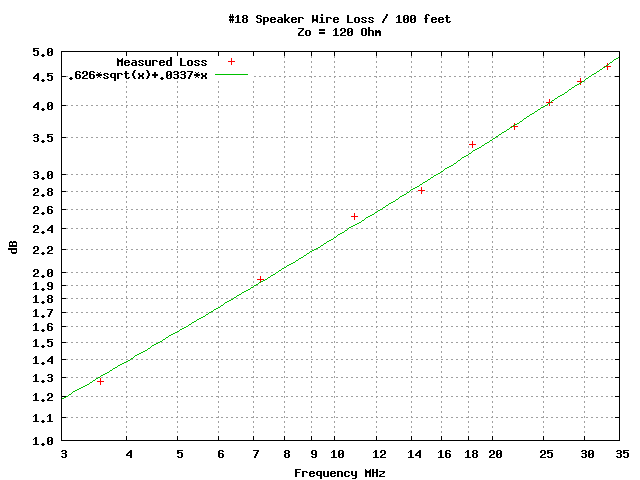

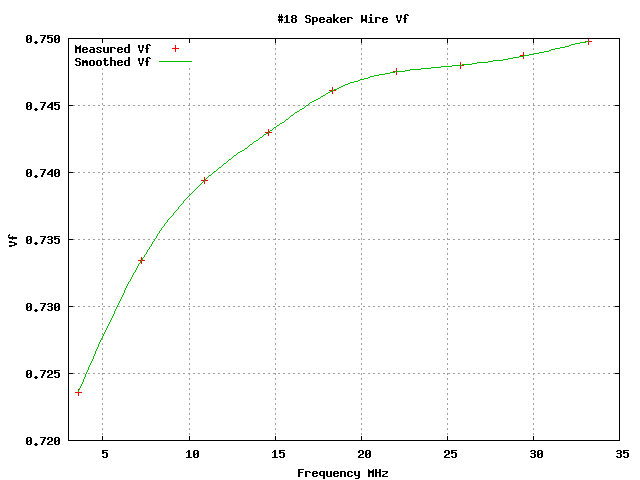

Speaker Wire Loss and Velocity Factor Measurements
