1:1 and 4:1 Current Balun Measurements

Image Image

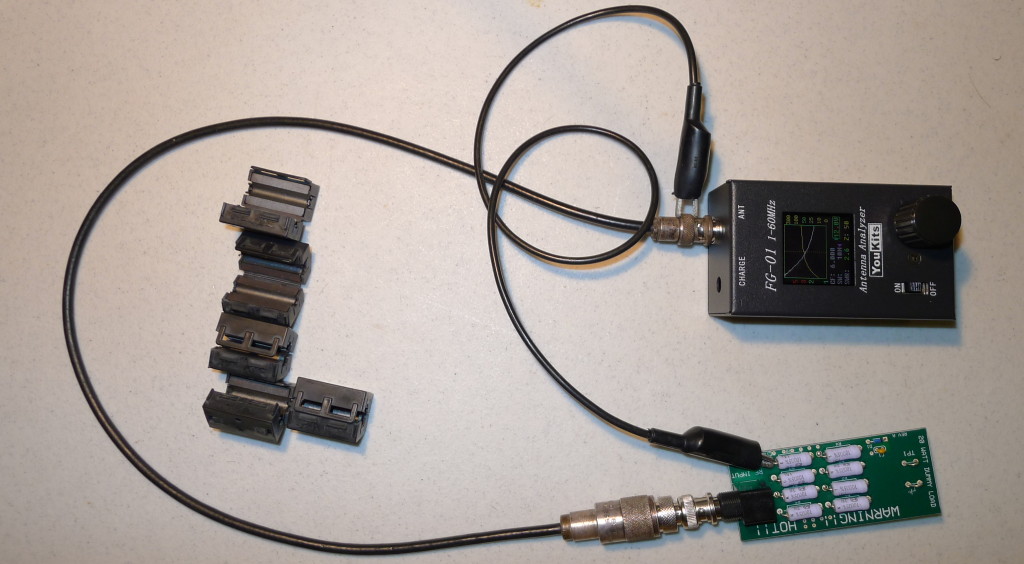

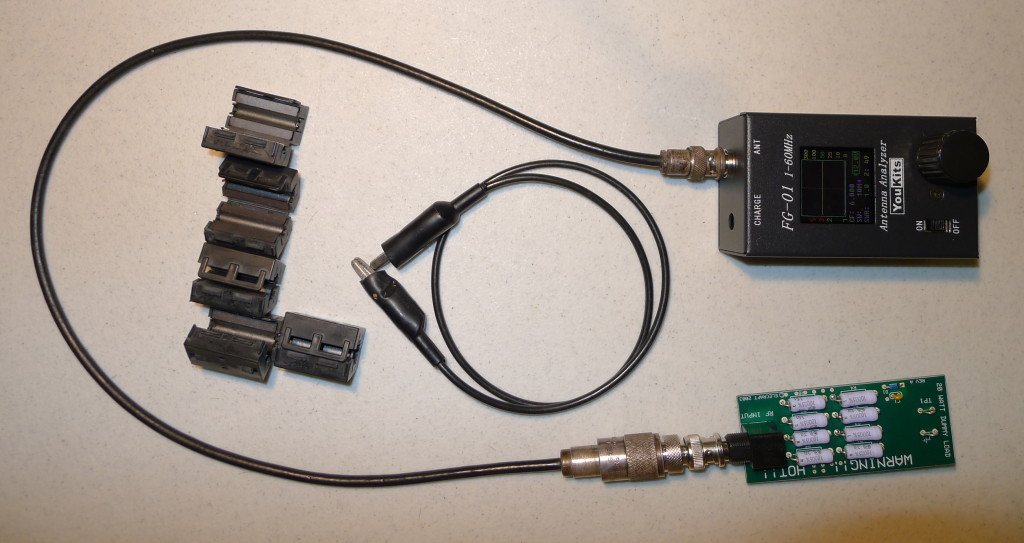

Normal

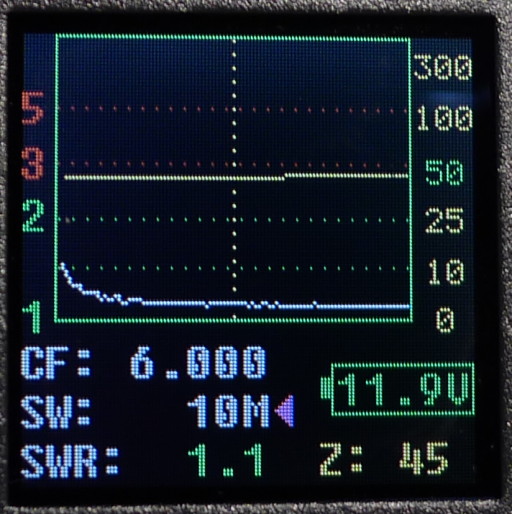

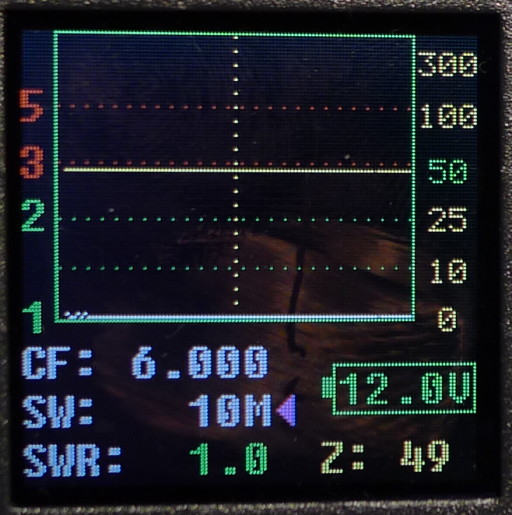

As expected, the SWR and Impedance are flat line traces.


Image Image

Center Conductor Short without Balun

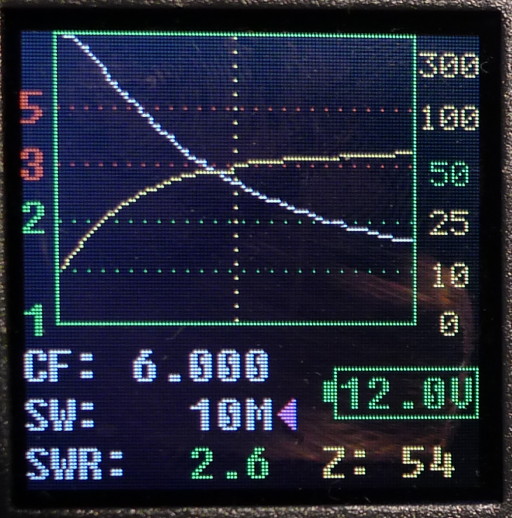

As expected, the SWR and Impedance are unacceptable.


Image Image

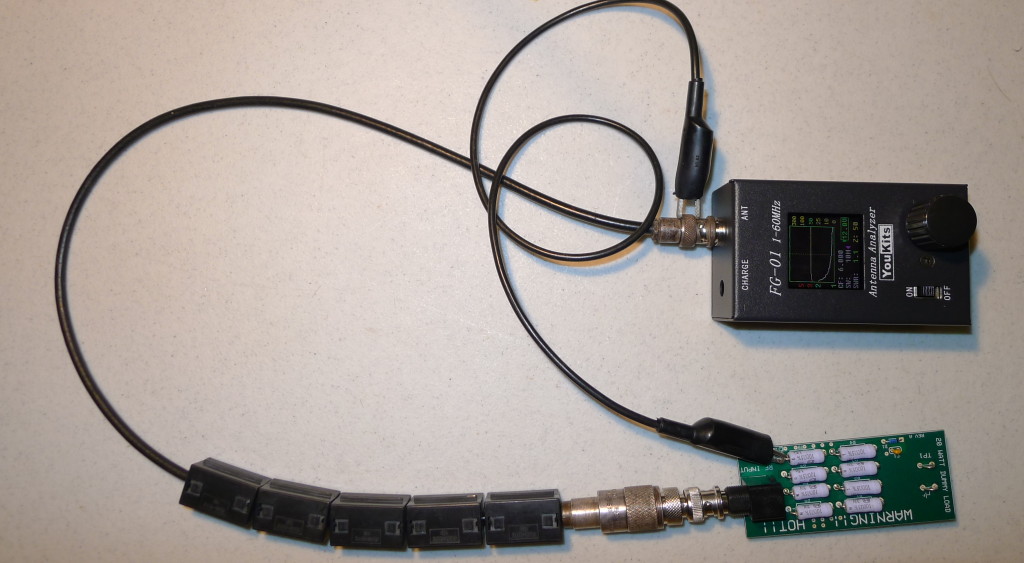

Center Conductor Short with Balun

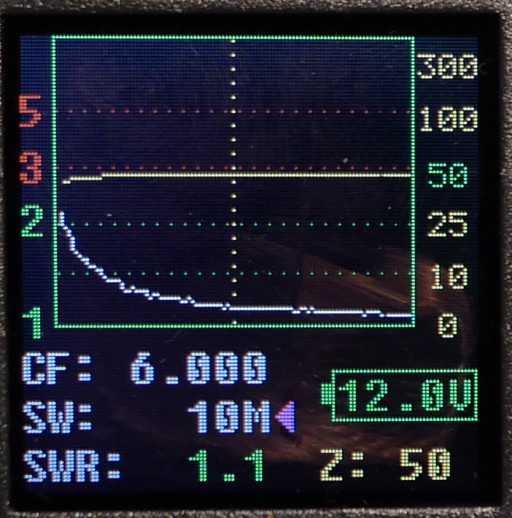

With five Palomar FSB-1/4 Ferrite Split Beads, the Balun has acceptable performance at about 6 MHz and above.


Image Image

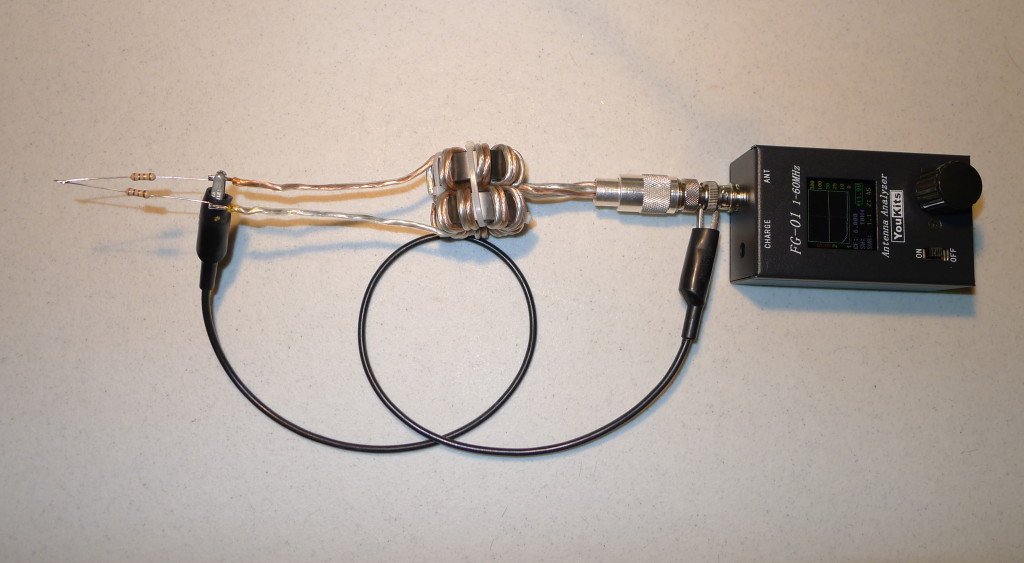

FT140-43 Dual Core 4:1 Current Balun with one lead shorted

  • This Balun is good from about 3.5 MHz (SWR = 1.1) and up.
  • FT140-43 Balun choking Z with 9T at 3.5 MHz using Calculator = 1576 ohms
  • 3.5 MHz choking to load impedance ratio = 7.9:1




Plot with limit unbalance.


20 MHz with limit unbalance.

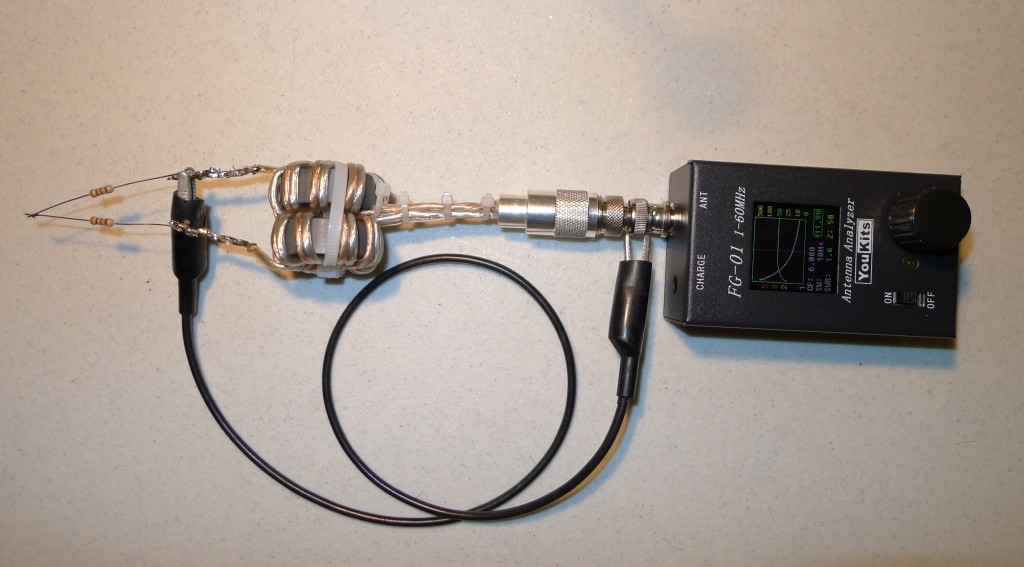

FT140-61 Dual Core 4:1 Current Balun with one lead shorted

  • FT140-61 Balun choking Z with 9T at 20 MHz using Calculator = 1527 ohms
  • 20 MHz choking to load impedance ratio = 7.6:1




Normal plot


Plot with limit unbalance.

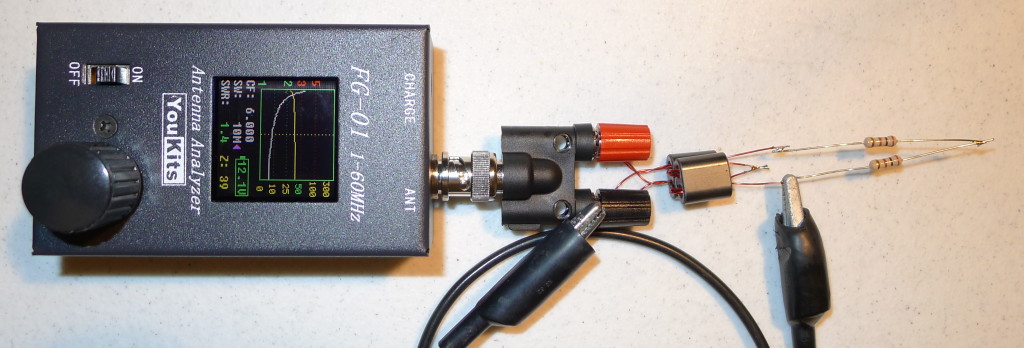

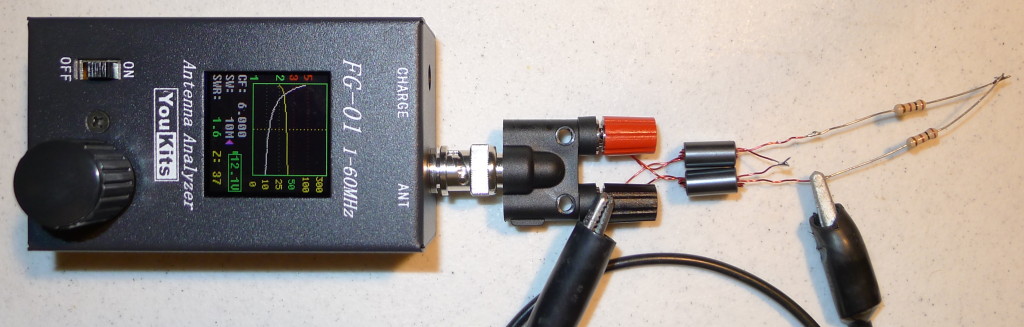

BN43-202 with 1:1 Baluns on both cores




Normal plot


Plot with limit unbalance.

BN43-202 with each 1:1 Baluns on separate core




Normal plot


Plot with limit unbalance.

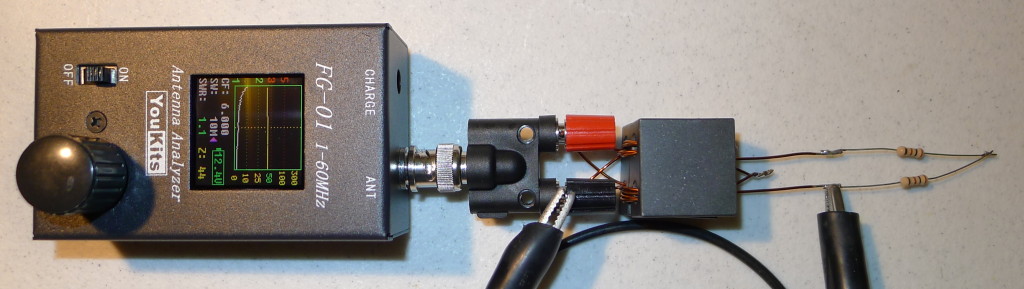

BN43-7051 3T 4:1 Balun




Plot with limit unbalance.

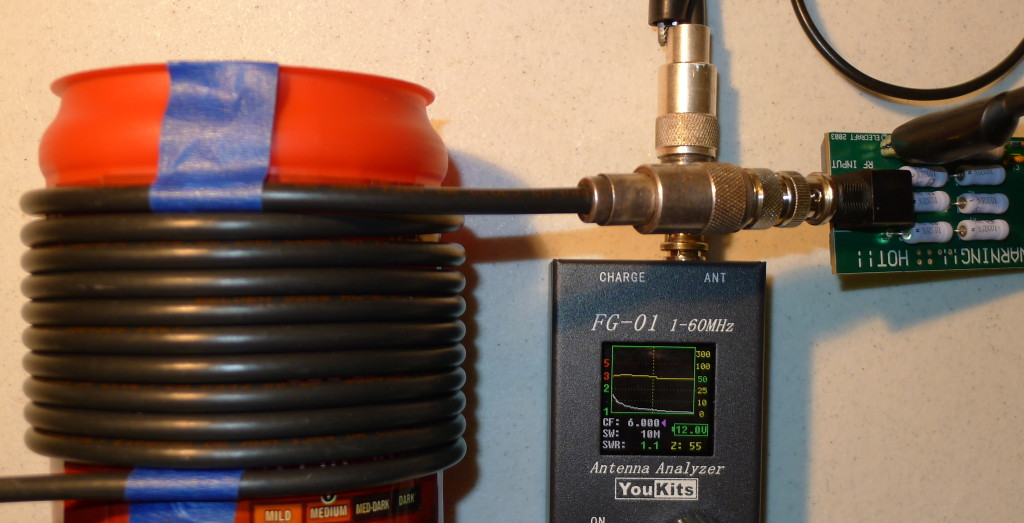

RG-8X Coax Coil Balun, 4" diameter, 10 Turns

  • Balun choking Z at 6 MHz (~11 uh) = 415 ohms
  • 6 MHz choking to load impedance ratio = 8.3:1




Limit unbalance at 1.1:1 SWR 4 MHz.

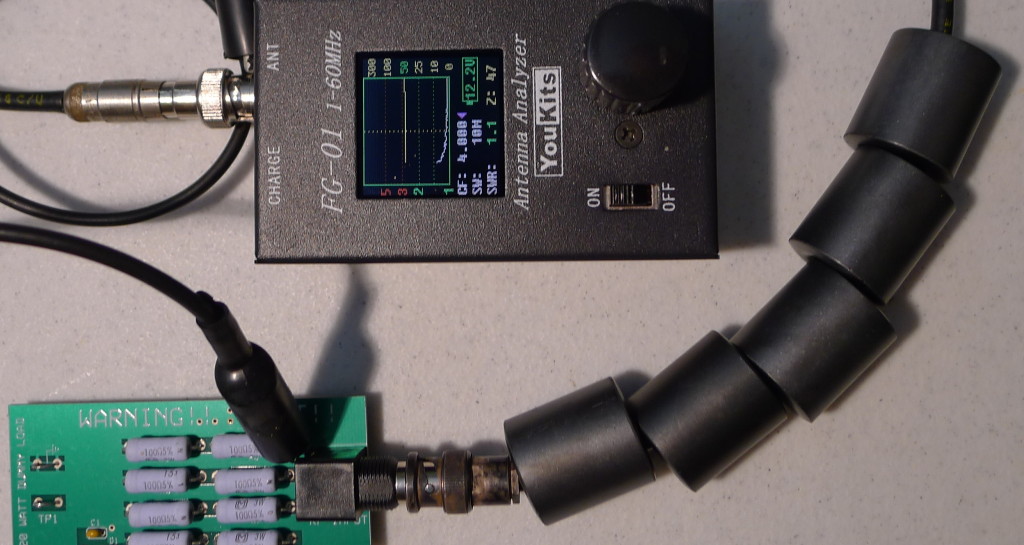

Five FB-43-1020 Beads

  • Balun choking inductance at 4 MHz using Chart = 3.2 uH x 5 = 16 uH
  • Balun choking Z at 4 MHz = 402 ohms
  • 4 MHz choking to load impedance ratio = 8:1
