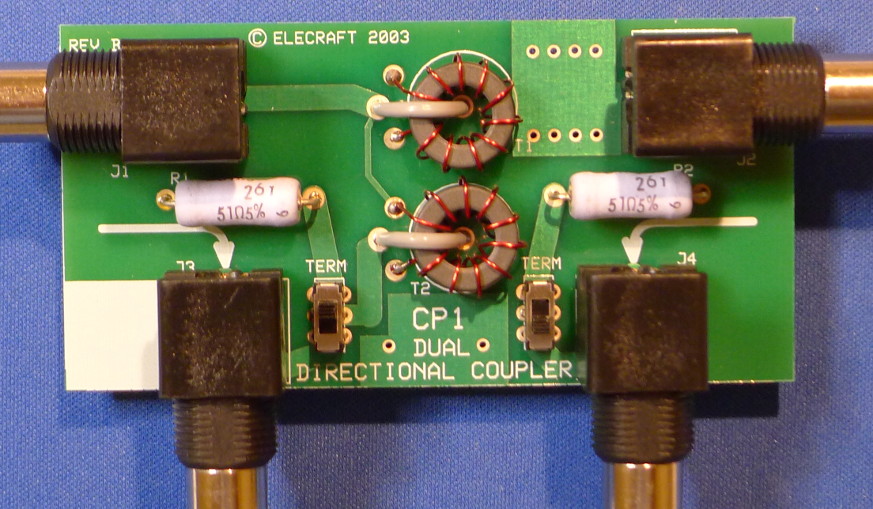

Elecraft CP1

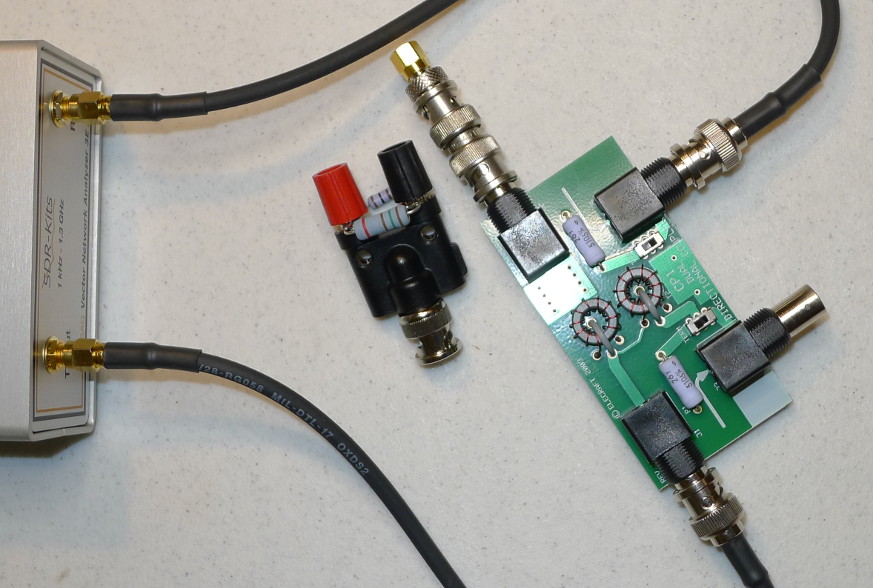

Through, J1 In, J2 Out, J3 and J4 terminated with 51 Ohm Internal Loads

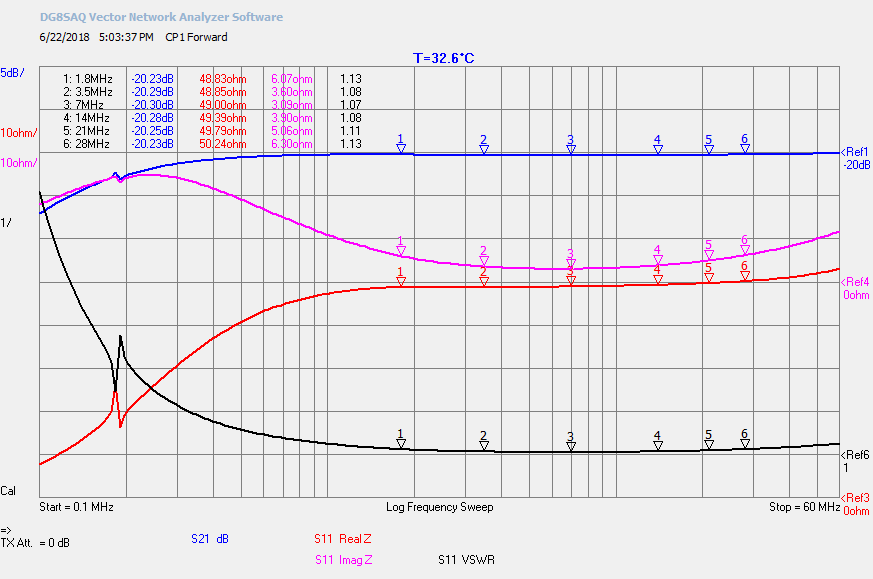

Forward Port 50 Ohm Load

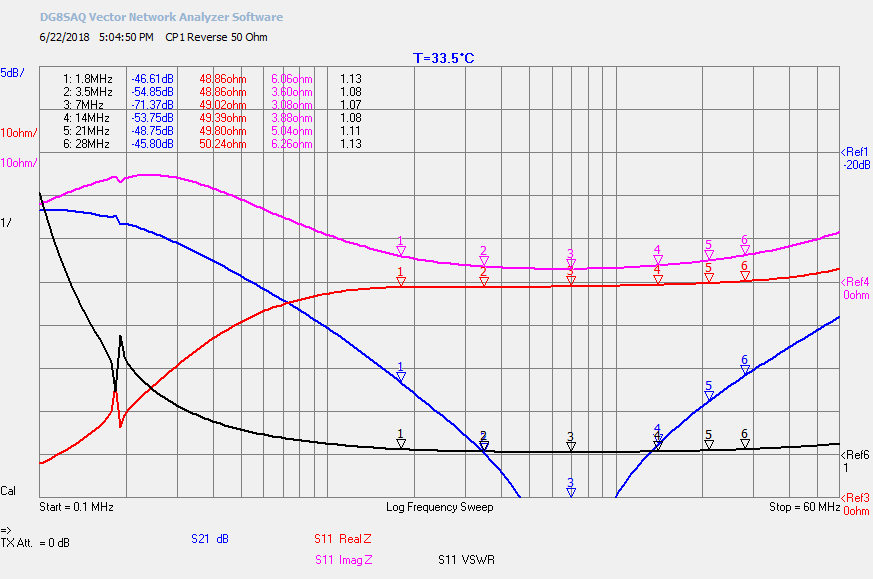

Reverse Port 50 Ohm Load

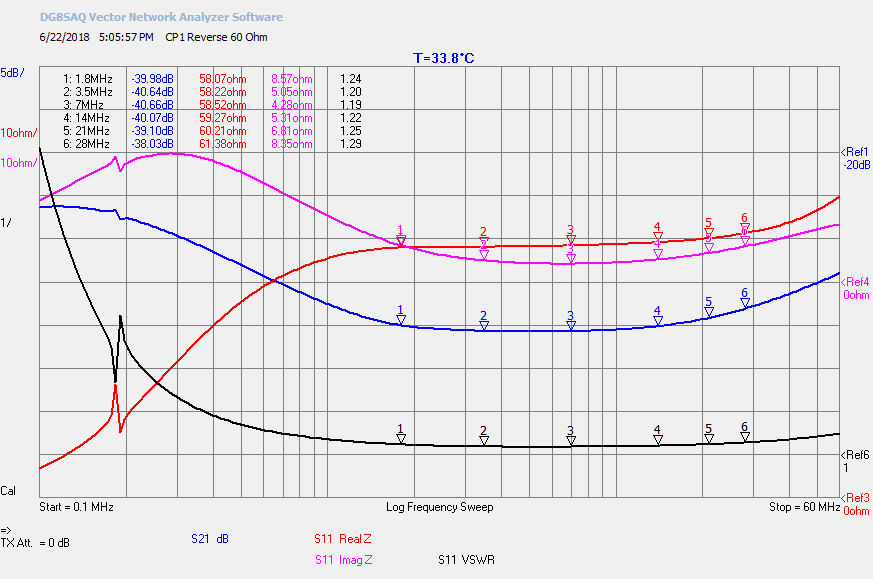

Reverse Port 60 Ohm Load

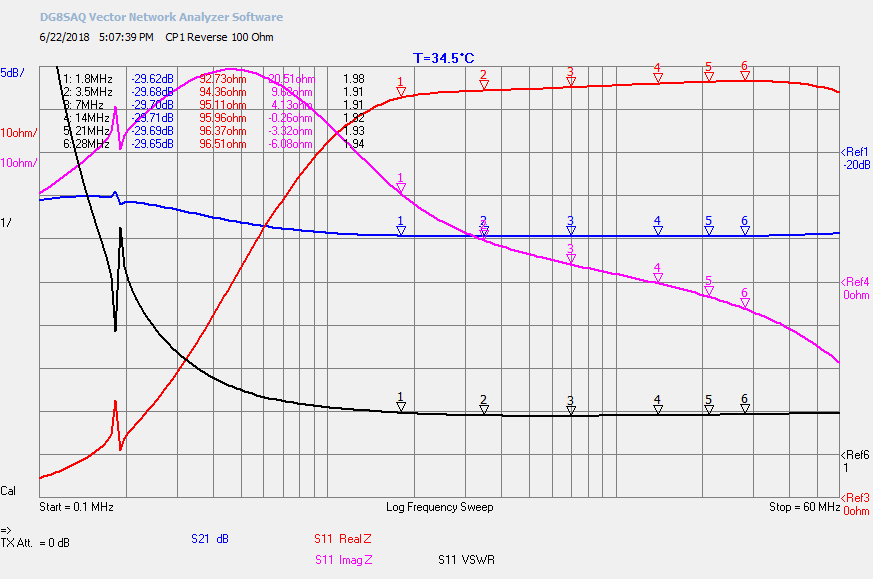

Reverse Port 100 Ohm Load

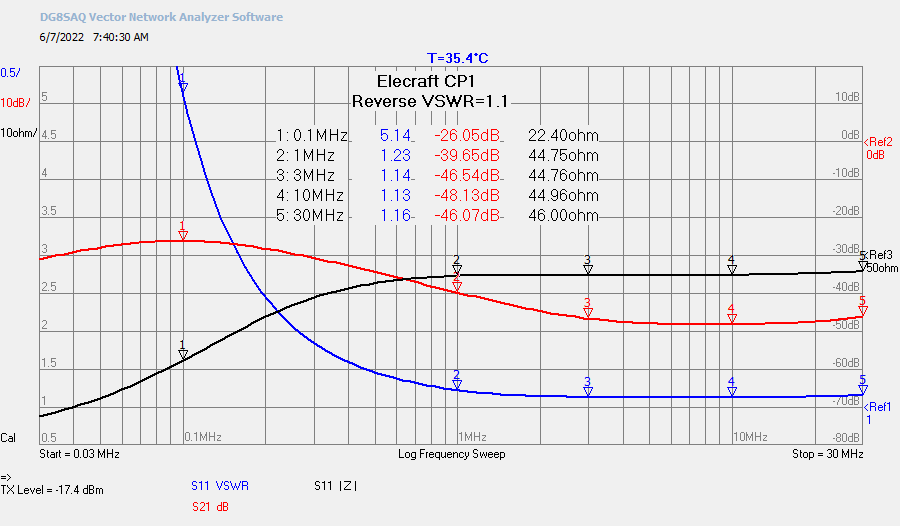

Reverse Port VSWR=1.1 Load

10MHz Forward = -20.25dB

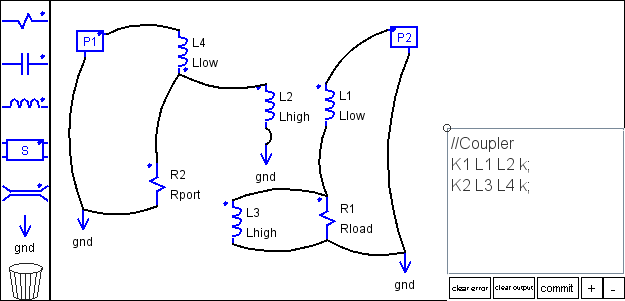

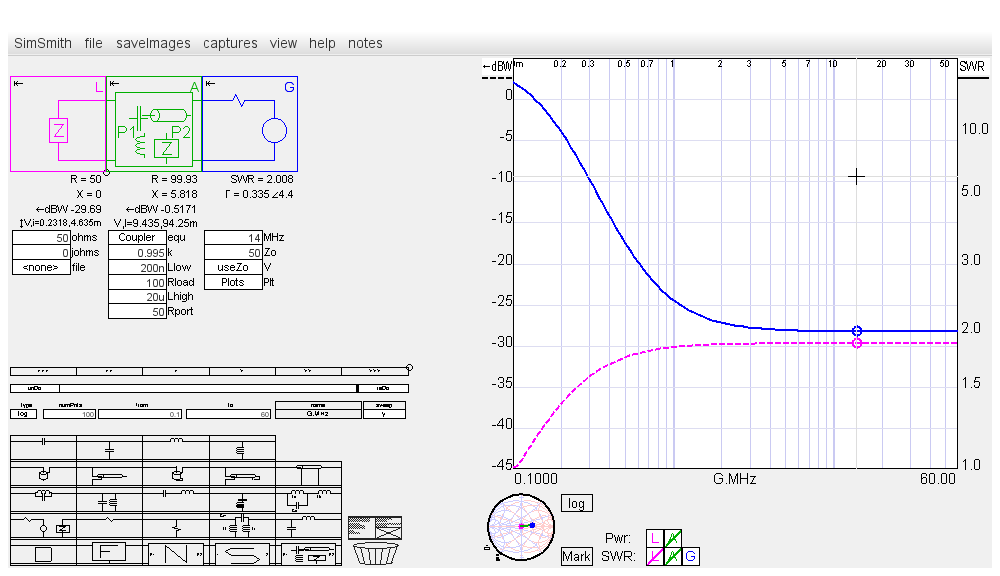

Idealized SimSmith Model

Elecraft CP1
