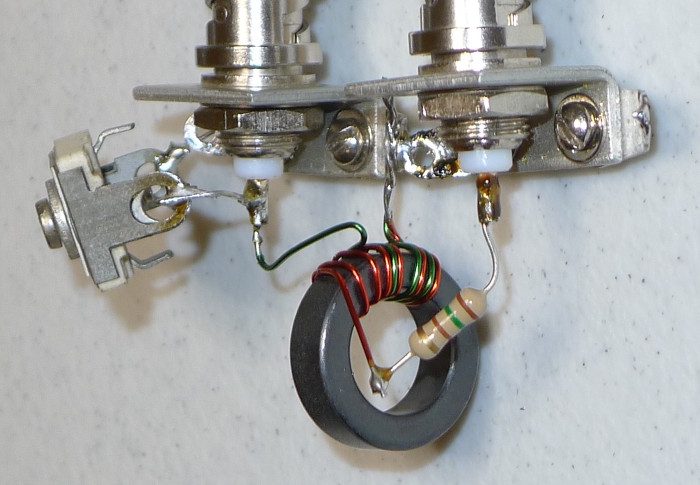

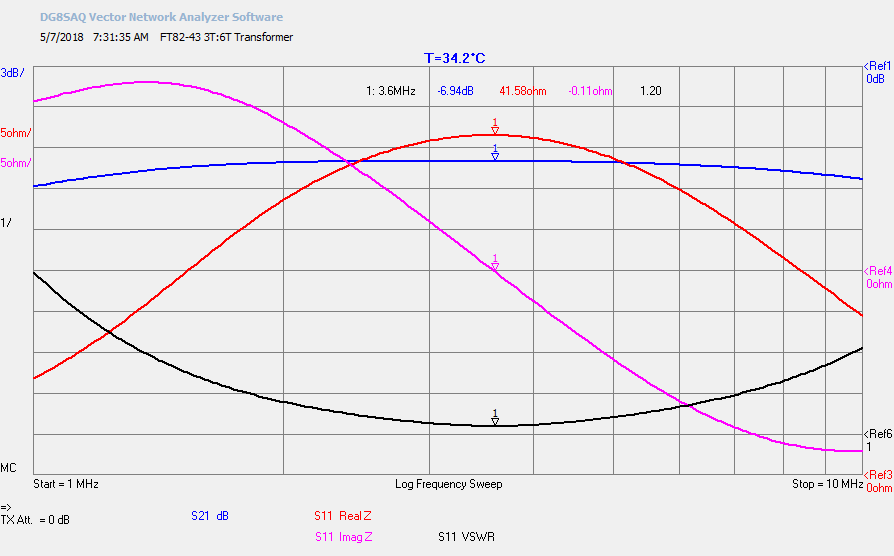

VSWR 1.20 Load Mismatch Attenuation = 0.033 dB
Transformer Loss = 6.94 - 6.02 - 0.033 = 0.887 dB
Compute Magnetizing Admittance
10^(0.887 / 10) x 0.02 - 0.02 = 0.004532
Compute Real R Core Loss
1 / 0.004532 = 220.66
VSWR 1.20 Load Mismatch Attenuation = 0.033 dB
Transformer Loss = 6.94 - 6.02 - 0.033 = 0.887 dB
Compute Magnetizing Admittance
10^(0.887 / 10) x 0.02 - 0.02 = 0.004532
Compute Real R Core Loss
1 / 0.004532 = 220.66

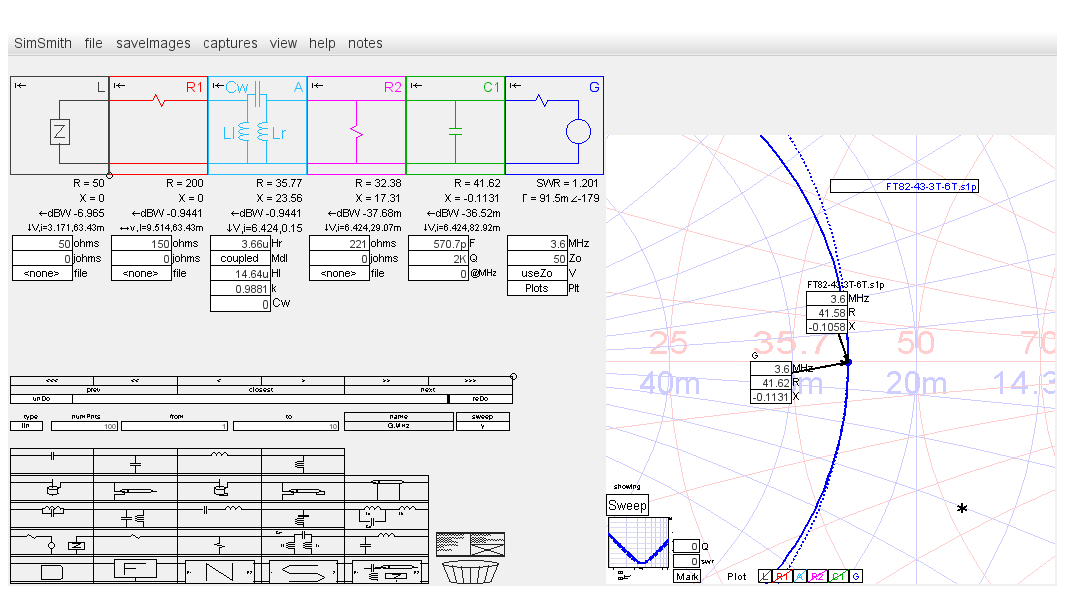

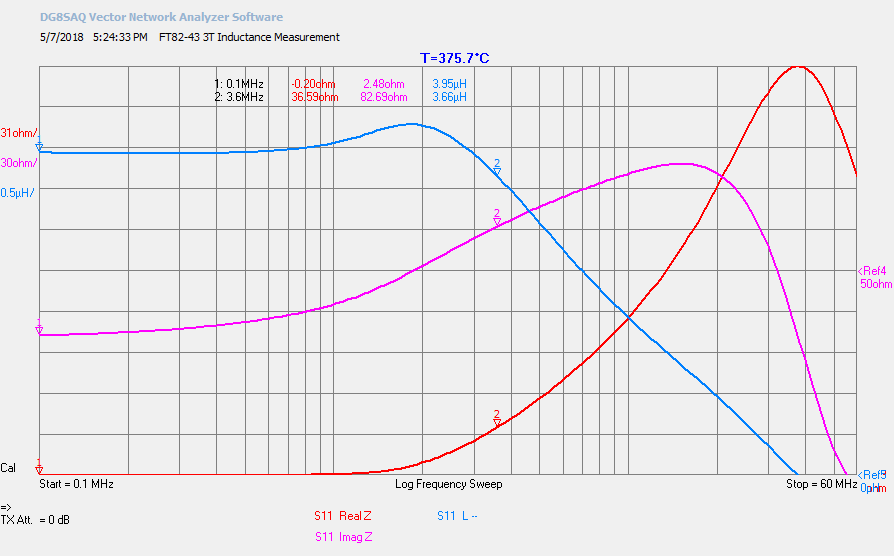

3.6 MHz Rs=36.59 Xs=82.69

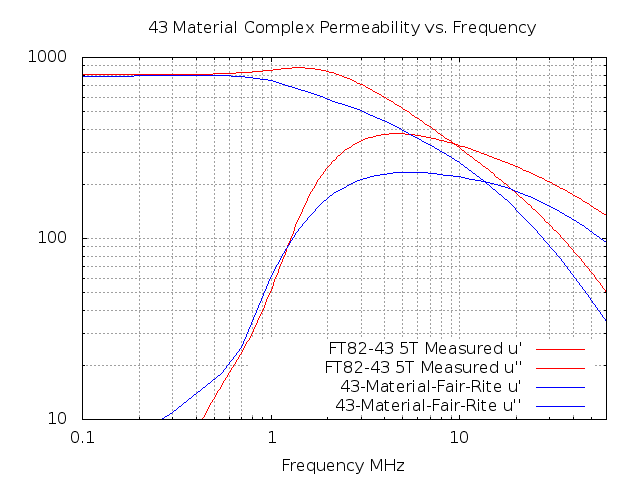

Computed μ'=689 μ"=305
Equations for computing μ' and μ"

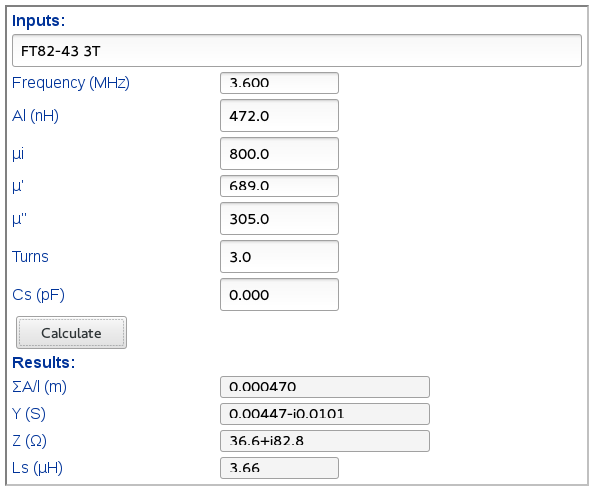

Using Calculate ferrite cored inductor (from Al)
Magnetizing Admittance, real part of Y(S) = 0.00447
Core Loss = 10 * log10((0.00447 + 0.02) / 0.02) = 0.876 dB
Same batch of cores, not the same core as above
